PVC Gypsum Ceiling Tile in Zimbabwe by Automatic Productinon Line and High Output

PVC Gypsum Ceiling Tile in Zimbabwe by Automatic Productinon Line and High Output

Production introduction:

PVC gypsum ceiling tile is made of paper-faced board with a layer of PVC on surface and aliminum foil on its back. it is a enviromental friendly, light weight, fireproof, waterproof and corrosion-resistant decorative ceiling board. it is easy to clean,and the patterns can be customized, it can be widely used in high fireproof and waterproof requirement enviroment, such as hotels, restaurants, shooping malls, theaters, stations,auditoriums, offices,living rooms, office buildings, electroic computer rooms, preision instrument rooms, and interior decoration of factories or houses.

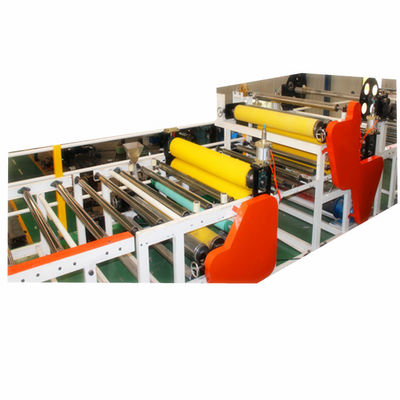

Gypsum board lamination machine is to laminate film on gypsum board,the whole machine is in a synchronous way.

1.Capacity:

7000-12000m2 per day

(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)

2.Automation

simple and high degree automatic

3.Main materials

Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum

4.Dimension of product

Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm

Double sided laminating machine flowchart:

Automatic feeding→ dust cleaning →PVC film and aluminum foil laminating→ film cutting(manual/automatic)→conveying →vertical cutting(dust collecting)→horizontal cutting(dust collecting)→small board stacking →edge sealing →stretch packing →finished products stacking

Technical parameter:
