Building Material Mineral Fiber Wool Board Production Line With New Condition

Building Material Mineral Fiber Wool Board Production Line With New Condition

Building Material Mineral Fiber Wool Board Production Line With New Condition

Product Details:

Place of Origin: HEBEI Province, China
Brand Name: Greens-lvjoe group
Certification: CE ISO
Model Number: LV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard packing
Delivery Time: 90 days
Contact Now
Detailed Product Description
Raw Material: Mineral Fiber, Paper Fiber, Perlite Annual Capacity: 2 Million Sqm-12 Million
Condition: New Advantage: High Effiency
Size Of Board: 5-25mm Automatic Grade: Full Automatic

Full Automatic Mineral Fiber Tile Production Line With 2 - 12 Million Sqm Capacity


Product application

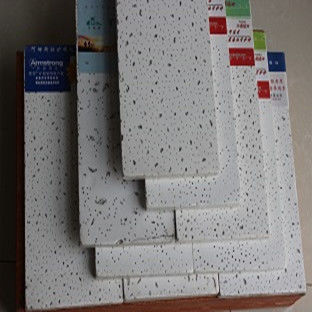

Mineral fiber board is a kind of acoustic decorative panel, which is mainly made of mineral fiber and produced by forming, drying, cutting and surface working procedures.

Its patterns mainly are babysbreath, caterpillar, curciate, strip lines and so on. Mineral fiber board has functions of sound insulation, heat insulation, fireproofing and no-sinking.


Main Features of final products

1) sound insulation

2) heat insulation

3) fireproofing

4) no-sinking


Raw material mixing

Raw material includes granulated wool, starch and so on, all the material and additive will form the slurry with certain concentration by conveying, mixing and stir. The slurry will be pumped into high level tank and fed to net in the shape of overflow type.


Fourdrinier is made up of mesh belt, compression roller, vacuum box and transmission mechanism. After natural dehydrating, vacuum dehydrating and compression dehydrating, wet slurry will form wet slab with a certain moisture content and thickness.


Wet slab will cut into the board with certain length and width, and the transverse cutting is at a certain angle with the long net machine. According to procedure, length cutting.


accelerating conveyor device

After boards with certain length and width forming, they will be sent to accelerating conveyor. Through multi-stage acceleration, the distance between the wet sheet and next is gradually pulled to facilitate the distribution of the wet sheet into the kiln.


Bridge kiln equipment includes bridge type distributor and feeding machine. The bridge type distributor is a multi-stage double roller conveyor, which is electrically operated and control wet plate of every layer be distributed into the kiln separately. Wet plates were fed into each roller of the feeder.


Feeding machine

The roller table of the feeder and the distributor receive the original plate containing water at the same speed, and are converted into slow speeds (ie, kiln speeds) respectively, and the wet plates are sent to the drying kiln for continuous drying.


Drying kiln

The system is the core of the whole production line, which effect directly the quality of products and energy consumption of system. There are various adjustment and control mechanism in drying kiln to ensure uniform temperature and airflow in every part, which will ensure drying quality and low consumption.


The system has hot furnace equipped with boiler. Fuel: nature gas, light oil, coal gas and so on.


board releasing device

Distributor receive the board respectively from every layer of roller table at low speed, switching high speed, and compound to a no-overlap layer and send them to the board releasing machine. The machine will transport the original board in order (dry board) to the transfer system.

Building Material Mineral Fiber Wool Board Production Line With New Condition
