PVC Ceiling Machine Automatic Production Line 1300mm Max Laminating Wid

PVC Ceiling Machine Automatic Production Line 1300mm Max Laminating Wid

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10lines/ year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei Province, China

Certification:

CE ISO

Name:

Gypsum Board Lamination Machine

Advantages:

High Output, Economic

Capacity:

2-6 Milliom Square Meters

Max Laminating Wid:

1300mm

Laminating Type:

Double Side And Double Side

Warranty:

1 Year

Speed:

3-15m/min(adjustable)

Packaging Details:

Standard size

Supply Ability:

10lines/ year

Highlight:

magnesium oxide board production line

gypsum ceiling production line

Product Description

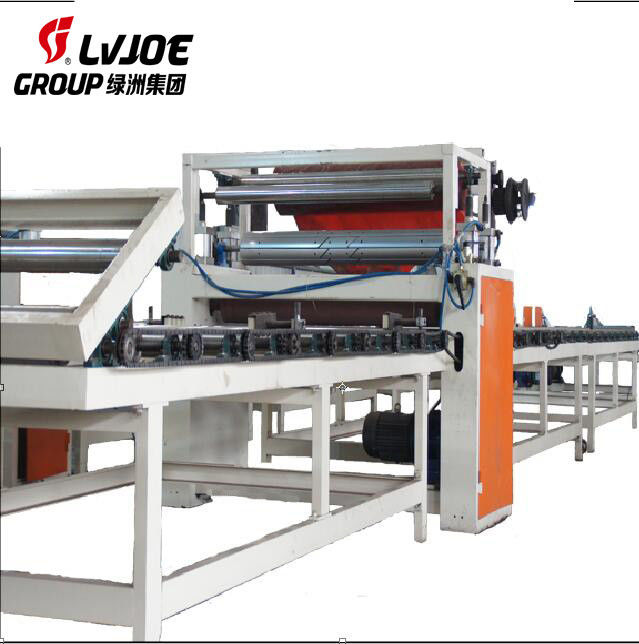

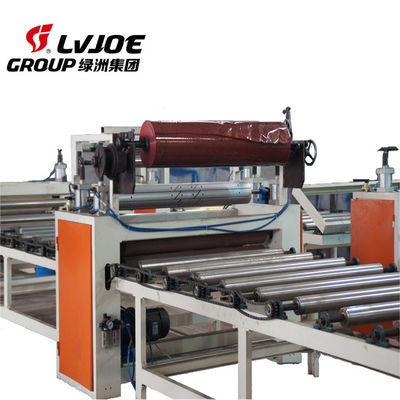

PVC Ceiling Machine Automatic Production Line 1300mm Max Laminating Width

Product Overview

The Gypsum Board Lamination Machine offers high output and economic efficiency, with a production capacity of 2-6 million square meters. Designed for double-side laminating with a maximum width of 1300mm, this machine features adjustable speed from 3-15m/min and comes with a 1-year warranty.

Key Features

Highly waterproof, moisture-proof, and flame-resistant output
Excellent heat resistance and thermal insulation properties
Anti-sagging and deformation-resistant construction
Radiation-proof and environmentally safe materials
Lightweight yet strong tension for durable performance

Technical Specifications

Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-4 million Sq.m

Material Compatibility

Film Materials: PVC film, aluminum foils, decorative materials

Board Materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Standard Product Sizes

Dimensions: 595×595mm, 600×600mm, 603×603mm, 600×1200mm, 603×1212mm
Thickness: 7.5mm, 8.0mm, 8.5mm, 9.0mm, 9.5mm, 12.0mm
Backing Options: Aluminum foil or paper backing
Surface Finishes: Various designs and color PVC sheets available

Comprehensive Support Services

Professional installation and debugging teams available for on-site setup
Full-year supply of accessories with 1-year equipment guarantee
Year-round technical consultation and problem resolution
Assistance with import/export procedures and documentation
Production engineers available for operational support and long-term cooperation
