Full Automatic Sheet Perforation Machine Gypsum Board Hydraulic Hole Punching Machine

Full Automatic Sheet Perforation Machine Gypsum Board Hydraulic Hole Punching Machine

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE SGS

Pressure:

80T, 160T, 200T

Features Of Machine:

Easy To Install,easy To Operate,energy Saving

Key Technology:

High Precision Coating And Pneumatic Lamination

Automatic Level:

High Automatic

Thickness:

Max. 20mm

Experience:

15years

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

metal sheet perforation machine

perforated sheet making machine

Product Description

Full Automatic Sheet Perforation Machine Gypsum Board Hydraulic Hole Punching Machine

Attribute	Value
Pressure	80T, 160T, 200T
Features of machine	Easy to install, easy to operate, energy saving
Key technology	High precision coating and pneumatic lamination
Automatic level	High automatic
Thickness	Max. 20mm
Experience	15 years

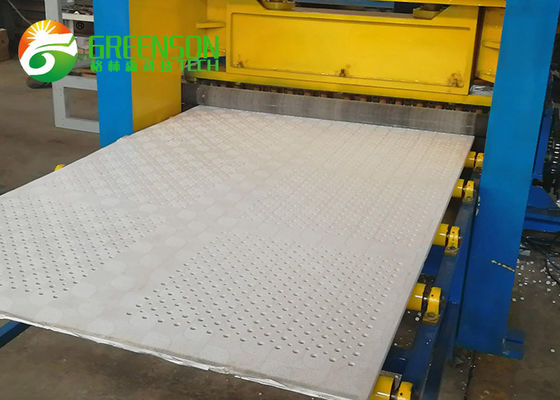

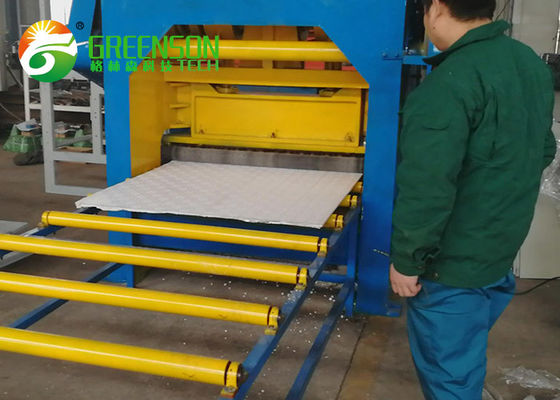

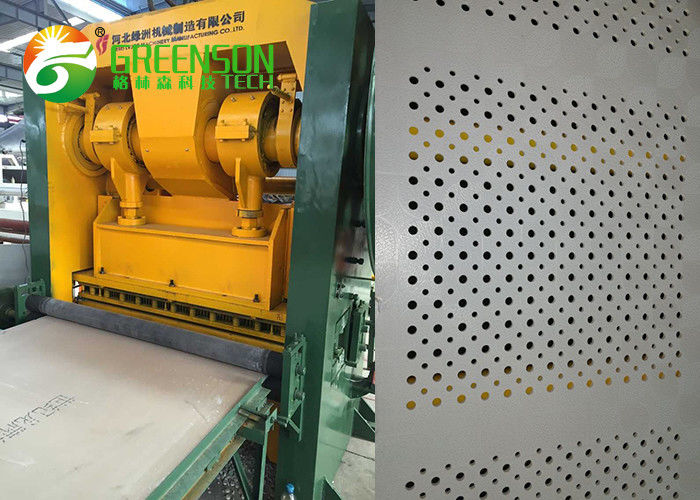

Full Automatic Gypsum Board Hydraulic Hole Punching Machine

About the machine: This hydraulic punching machine perforates metal plates to create mesh with various hole patterns. By simply changing the mold, we can accommodate diverse customer requirements. Commonly used for decorative applications and foot pedals.

Compatible materials: Stainless steel, aluminum, cold/hot rolled steel, copper plate, fiberboard, plastic board, and more.

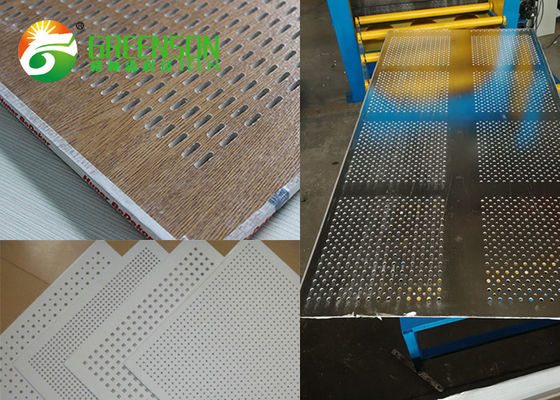

Available hole shapes: Long square, square, round, triangular, hexagonal, plum blossom, fish scale, and other custom patterns. We can manufacture specialized dies according to customer specifications.

Technical Specifications

Punching pressure: 160 KG
Punching stroke: 30mm
Maximum gypsum board thickness: 20mm
Total machine weight: 7,000 KG
Punching speed: 1 board/minute at 50 strokes/minute (1220mm × 2400mm)

Produces clean, smooth holes with precise vertical alignment and minimal burring. Our technicians provide comprehensive operation training upon installation.
