PVC Covered Gypsum Ceiling Panels Production Line With Automatic Push Type Feeder

Automatic Push Type Feeder for PVC Covered Gypsum Ceiling Panels Production Line

PVC gypsum ceiling tile is made of paper-faced gypsum board with a layer of PVC on surface and aluminum foil on its back. It is a environmental friendly, light weight, fireproof, waterproof and corrosion-resistant decorative ceiling board. It is easy to clean, and the patterns can be customized. It can be widely used in high fireproof and waterproof requirement environment, such as hotels, restaurants, shopping malls, theaters, stations, auditoriums, offices, living rooms, office buildings, electronic computer rooms, precision instrument rooms, and interior decoration of factories or houses.

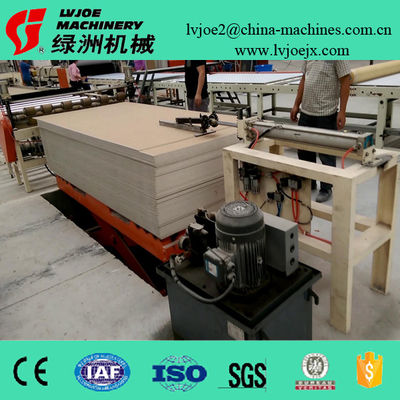

Push type Feeder

Cylinder push, photoelectric control. Max stroke of cyliner is 700mm. easy to operate, feeding fully automatic.

Max. Load-bearing: 3000kg

Stroke: 1500mm

Min. height: 620mm

Max. height: 2000mm

Table size: 1200*2400mm

Hydraulic station power: 4KW

Flowchart of PVC Gypsum Ceiling Tiles Production Line

Automatic feeding-dust cleaning- PVC film and aluminum foil laminating-film cutting(automatic/manual)-conveying-longitudinal cutting(dust collecting)-horizontal cutting(dust collecting)-small board stacking-edge sealing-packing-finished products stacking

The packing machine
