PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine

PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine

PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine

Product Details:

Place of Origin: Shijiazhuang, Hebei province
Brand Name: LVJOE
Certification: ISO CE
Model Number: Lvjoe-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 line
Price: Negotiation
Packaging Details: PE film packing
Delivery Time: 60 working days
Supply Ability: 10 line per year
Contact Now
Detailed Product Description
Raw Material: Gypsum Board, PVC Film, Aluminum Foil, Glue Condition: New
Capacity: 2-6 Million Sqm Original: Hebei Province
Name: Fully Automatic Lamination Machine Feature: High Accuracy

Gypsum board laminated based on paper faced plasterboard, with special technology that laminating film on surface with sticking and pressing. The visual effect is peculiar and will be suitable for personalized decoration need.


Production feature:

1. Healthy and environmental

2. Various pattern, plentiful texture and complete color

3. No dust fall, moisture proof, mould proof

4. Easy to clean and maintain

5. Easy to operate and no need of second decoration

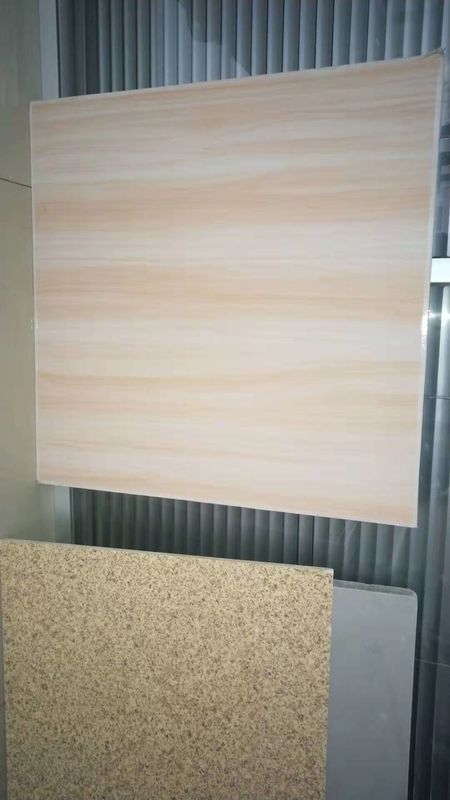

PVC film laminated gypsum board has advantages of waterproof, fireproof and soundproof, it is widely used to ceiling and partition wall due to visual effect and cleanliness. Everywhere they could be find in our usual lift, such as business building, supermarket, hospital, movie theater and so on.

PVC Laminated Gypsum Ceiling Tile Production Line


Chief Introduction:

This machine adopts latest coating and laminating technology, and is to laminate

the functional or decorative films with the board together. The whole machine is in synchronous way.


Technical parameter:

Effective laminating width 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment way Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-6 million Sq.m
Film material PVC film, aluminum foils, decorative material, etc.
Board sheet material

PVC baseboard, gypsum board, wood board,

sectional board, PVC foam board,etc

It can customize according to customer’s requirements.

PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine

Flowchart Of Full-automatic Laminating Machine

Automatic board feeding——pre dusting——coating——drying and conveying—— aluminium foil unwinding——pneumatic lamination for film and gypsum board——cutting——conveying——automatic overturn——coating——drying and conveying——PVCfilm unwinding——pneumatic lamination for film and gypsum board——cutting——drying and conveying——lengthwise cutting——horizontal cutting——belt conveyor output——autolift stacking conveying——stretch packing——conveying——lift(finished products stacking)

PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine

Main equipments of this production line

1. Automatic loading device

2. Lamination machine

The lamination machine is used to paste the decorative film and boards together. First, put the board on the rollers. After the dust collection process, coat the glue on the boards, the glue will be qualitatived after conveying on the guide rollers. Then it will be combined with the film and enters into the recombination mechanism. After passing and cyclic rolling of the two lines of press roller, pinch roller and forming roller, the recombination is finished.

3. Automatic cutting machine

The machine is used for cutting the laminated gypsum boards to be certain small pieces which are going to be used in the decoration. First, put the boards on the conveying rollers, then go to the first cutting device. After passing the second cutting device, the board will be formed.

4. The Electrostatic Pulse Bag Style Dust Collector

The machine is used in the dust collector of the automatic cutter of the laminated gypsum board. It equipped with big sized dust exhaust fan and dust exhaust pipe. It can efficiently reach to the purpose of the dust exhausting.

5. Automatic overturn

6. Automatic stacking machine

7. Automatic sealing machine

8. Automatic package machine

This machine is used to pack finished gypsum board, it is a kind of advanced package way.

Pack the gypsum board with the film as a cover, when it passes through the heating room, the film will become shrink, so as to moisture proof.

PVC / Aluminum Foil Laminated Gypsum Ceiling Panel Edge Sealing Machine
