Fully Automatic Lamination Machine
Created with Pixso.

Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control

Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control

Brand Name: LVJOE
Model Number: Lvjoe-FM
MOQ: 1 line
Price: US $20000-200000
Supply Ability: 10 line per year
Detail Information
Place of Origin:
Shijiazhuang, Hebei province
Certification:
ISO CE
Raw Material:
Gypsum Board, PVC Film, Aluminum Foil, Glue
Condition:
New
Capacity:
2-6 Million Sqm
Original:
Hebei Province
Packaging Details:
PE film packing
Supply Ability:
10 line per year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description
Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control
Product Specifications
Raw Material Gypsum board, PVC film, aluminum foil, glue
Condition New
Capacity 2-6 million sqm
Origin Hebei province
Product Overview

Our gypsum board lamination system utilizes specialized technology to bond decorative films to paper-faced plasterboard through precise sticking and pressing processes. This creates unique visual effects ideal for customized decorative applications.

Key Production Features
  • Environmentally friendly manufacturing process
  • Wide selection of patterns, textures, and colors
  • Dust-free, moisture-resistant, and mold-proof properties
  • Easy maintenance and cleaning
  • Simple installation requiring no secondary decoration

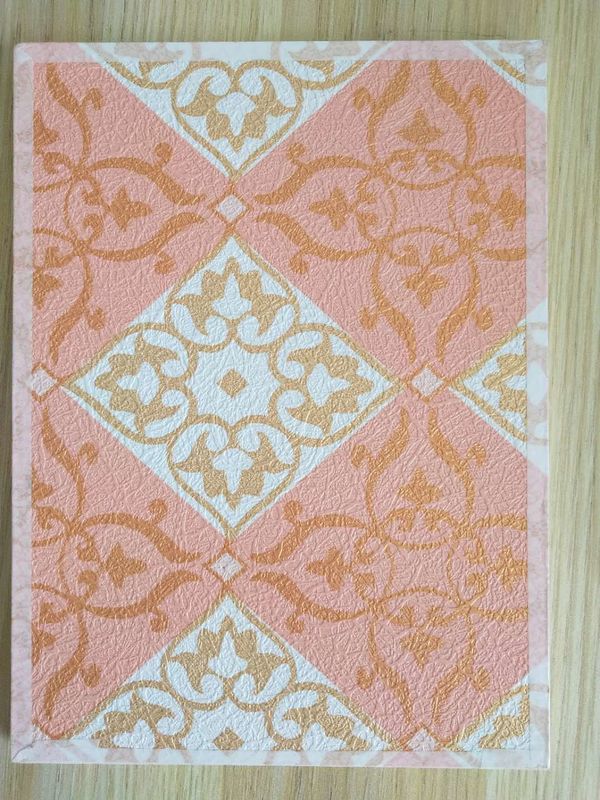

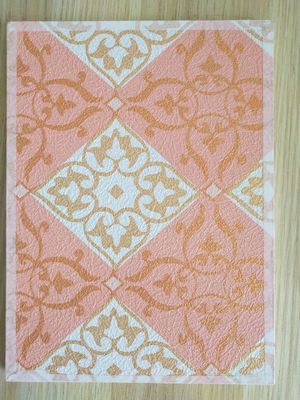

PVC film laminated gypsum boards offer superior waterproofing, fire resistance, and sound insulation. Their aesthetic appeal and hygienic properties make them ideal for ceiling and partition applications in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

System Introduction

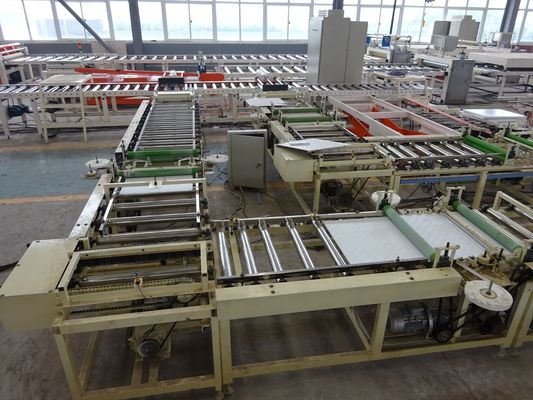

This advanced production line incorporates the latest coating and laminating technologies to bond functional or decorative films to various board substrates. The entire system operates with synchronized precision.

Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control 0
Technical Parameters
Effective laminating width 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-6 million Sq.m
Film material PVC film, aluminum foils, decorative material, etc.
Board sheet material PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Note: Custom configurations available to meet specific customer requirements.

Automated Production Process
Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)
Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control 1
Core Production Line Equipment
  • Automatic Loading Device: Ensures continuous material feeding for uninterrupted production.
  • Lamination Machine: Precisely bonds decorative films to boards through dust collection, glue application, and multi-stage roller pressing.
  • Automatic Cutting Machine: Accurately sizes laminated boards for decorative applications using dual cutting systems.
  • Electrostatic Pulse Bag Style Dust Collector: Features high-capacity exhaust systems for optimal dust control during cutting operations.
  • Automatic Overturn System: Enables dual-side processing capability.
  • Automatic Stacking Machine: Organizes finished products efficiently.
  • Automatic Sealing & Packaging System: Provides advanced shrink-wrap protection against moisture with film heating technology.
Nonwoven Fiber Glass Laminated Gypsum Ceiling Tiles Production Line PLC Control 2
