Perforated Gypsum Board Automatic Spray Painting Line With Continuous Drying Section

Perforated Gypsum Board Automatic Spray Painting Line With Continuous Drying Section

MOQ:	1 Set
Price:	$150000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Perforated Gypsum Board Automatic Spray Painting Line With Continuous Drying Section

Keyword:

Automatic Plasterboard Water-based Paint Spray Coating Production Line

Line Speed:

5-6 M/min

Application:

Gypsum Board / Plaster Board / Perforated Gypsum Board / Paper-faced Gypsum Board

Coating Material:

Water-based Latex Paint (Eco-friendly)

Spraying Mode:

Single-coat / Double-coat

Place Of Origin:

Hebei, China

Board Size:

600×600mm, 600×1200mm, 1220×2440mm

Control Method:

Variable-frequency Speed Regulation

Usage:

Decorative Surface Finishing For Gypsum Board

Highlight:

Perforated Gypsum Board Spray Painting Line

Automatic Gypsum Board Painting Line

Gypsum Ceiling Tile Production Line

Product Description

Product Overview

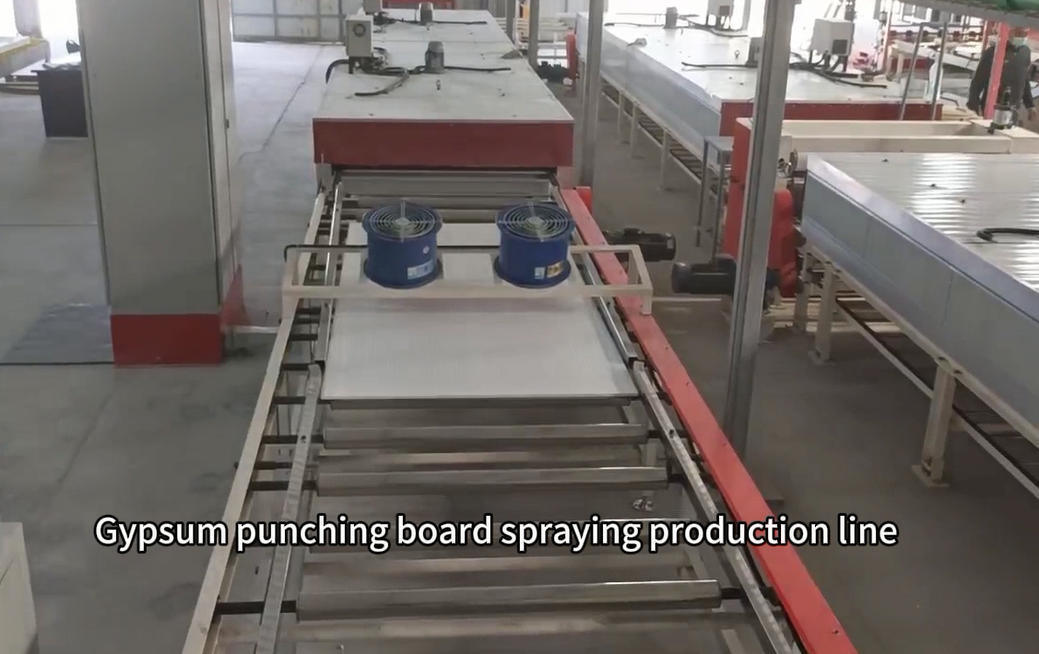

This gypsum-board spraying production line applies eco-friendly water-based latex paint to the surfaces of perforated gypsum boards or paper-faced gypsum boards for decorative finishing. Both single-coat and double-coat spraying modes are supported.

Spraying Process Flow

1st-coat spraying
1st-stage drying
2nd-coat spraying
2nd-stage drying
Board combining
Board stacking
Palletizing
Packaging

Technical Parameters

Item	Specification
Applicable gypsum-board sizes	600 × 600 mm, 600 × 1200 mm, 1220 × 2440 mm
Line running speed	5–6 m/min
Installed power (for single-coat spraying and drying section)	125 kW
Control mode	Variable-frequency speed regulation
