Turnkey Rock Wool Sandwich Panel Production Line Project

Turnkey Rock Wool Sandwich Panel Production Line Project

Brand Name:	Greenson
MOQ:	1
Price:	$790000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Turnkey Rock Wool Sandwich Panel Production Line Project

Keyword:

Fireproof Rock Wool Sandwich Panel Production Line

Application:

Building

Color:

Customer's Requirement

OEM:

Yes

Feature:

Full-Automatic

Packaging Details:

Plastic Film

Port Of Dispatch:

Tianjin

Highlight:

turnkey rock wool sandwich panel line

mineral wool board production equipment

sandwich panel production line project

Product Description

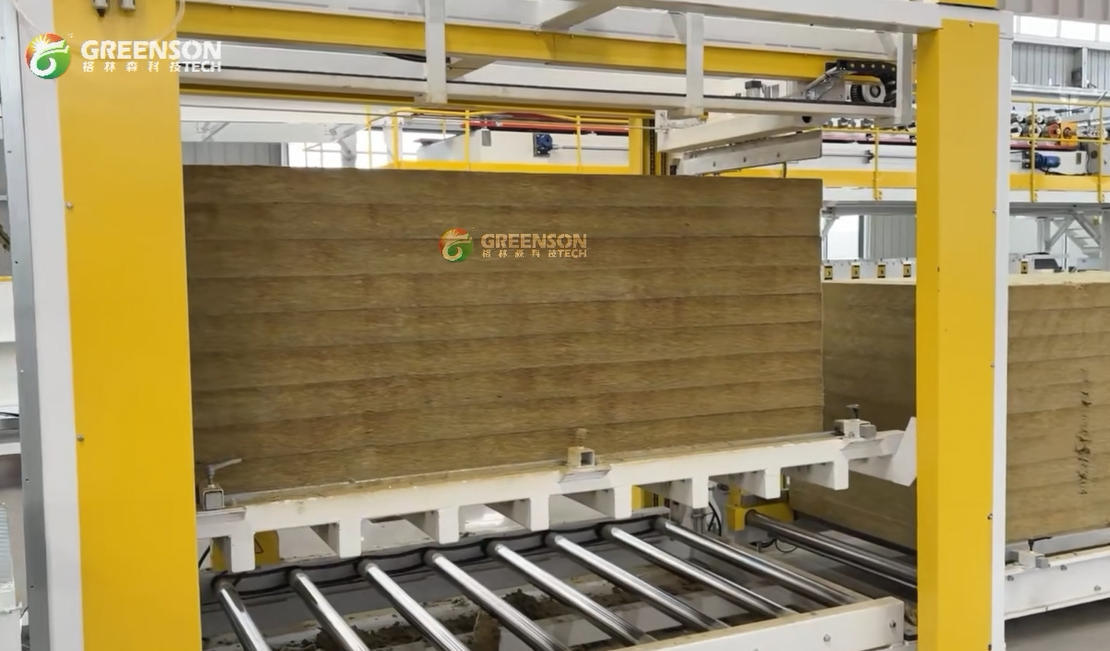

Turnkey Rock Wool Sandwich Panel Production Line Project

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
