Large Scale Acoustic Tile Plant Wet Formed Mineral Fiber Ceiling Board Machine

Large Scale Acoustic Tile Plant Wet Formed Mineral Fiber Ceiling Board Machine

Brand Name:	GREENS
Model Number:	KM
MOQ:	1 line
Price:	US $2000000-3000000
Payment Terms:	L/C,T/T
Supply Ability:	5 Lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei China

Certification:

ISO

Product Name:

Large Scale Acoustic Tile Plant Wet Formed Mineral Fiber Ceiling Board Machine

Keyword:

Slurry Forming Mineral Wool Line

Capacity:

6 Million Sqm/year To 12 Million Sqm/year

Voltage:

Customized

Warranty:

1 Year

After Sale Service:

Engineer Available To Service Machinery Overseas

Raw Material:

Mineral Fiber, Waste Paper, Perlite, Starch

Waste Paper:

0.45kg/sqm

Packaging Details:

Standard export packing

Supply Ability:

5 Lines per year

Highlight:

Large scale mineral fiber ceiling machine

Wet formed acoustic tile plant

Mineral fiber ceiling board equipment

Product Description

Large Scale Acoustic Tile Plant Wet Formed Mineral Fiber Ceiling Board Machine

Product Overview

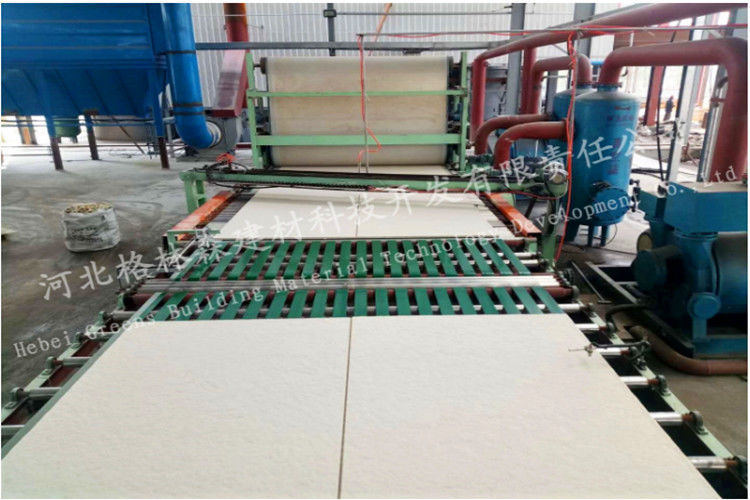

Complete mineral wool board production line with annual capacity of 6 million square meters, designed for manufacturing high-quality mineral fiber decorative acoustic boards.

About Mineral Fiber Board

Mineral fiber board is an environmentally-friendly building material processed through batching, forming, drying, cutting, embossing, and decorative finishing. Manufactured from granular cotton and other additives, it offers multiple functions including decoration, sound absorption, heat preservation, insulation, fire resistance, and lightweight construction.

Surface treatments include knurling and embossing with patterns such as gypsophila, cross flower, center flower, walnut pattern, and stripe pattern. The product is asbestos-free, harmless to human health, and features anti-sag functionality. Factory products are typically white but can be painted with various colorants.

Production Line Components

Raw material mixing system
Forming system
Cutting system
Drying system
Puttying system
Coating system
Embossing system
Cutting system
Packing system

Technical Specifications

Parameter	Specifications
Thickness	8mm, 9mm, 10mm, 12mm, 15mm, 18mm, 19mm
Size	300×300mm, 595×595mm, 600×600mm, 603×603mm, 605×605mm, 595×1195mm, 600×1200mm
Material	Wet-Formed Composite Mineral Fiber
Density	250-420 kg/m³
Surface	High Quality Vinyl Latex Paint
Color	White (other colors available)
Design	Little Star, Pinhole, Punching, Worm, Real Sand, False Sand, Fine Fissured, etc.
Application	Concert Hall, Council Chamber, Office, Theater, Dining Hall, Shopping Mall, Airport, Fitness, Library, Studio, etc.
