products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Gypsum Ceiling Tile Production Line
Created with Pixso.

600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

Name

600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

Brand Name: LVJOE
Model Number: 1300FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C,T/T
Supply Ability: 10 lines per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei，China(Mainland)
Certification:
ISO CE
Product Name:
600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine
Keyword:
PVC Laminated Gypsum Ceiling Tile Machine
Finished Board Type:
PVC Laminated Gypsum Board
Effective Laminating:
1300mm
Electric Control:
PLC System
Production Capacity:
2-6 Million Sq.m/year
Speed:
2-15m/min (adjustable)
After-sales Service:
Engineers Available To Service
Warranty:
1 Year
Glue Type:
Water Glue For PVC Film
Packaging Details:
Standard packing
Supply Ability:
10 lines per Year
Highlight:

600x600 ceiling tile machine PLC controlled

,

ceiling tile making machine gypsum production

,

PLC controlled ceiling tile production line

Product Description
600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine

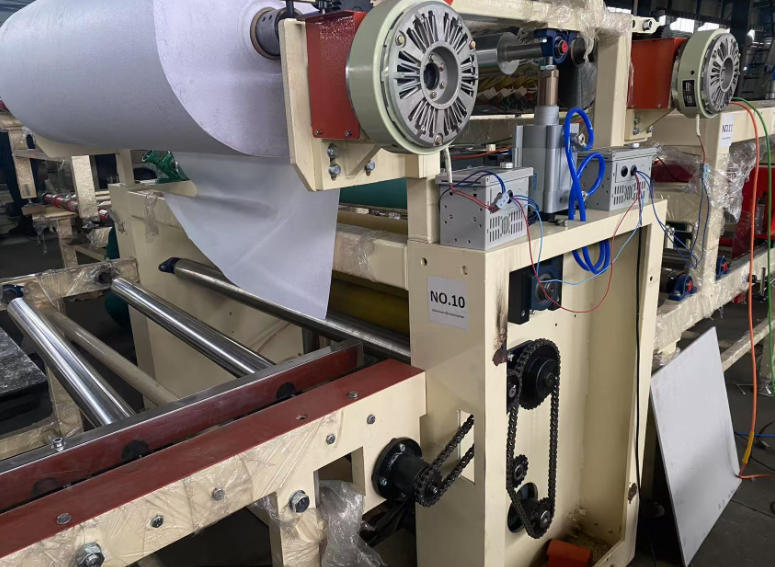

This advanced automatic PVC lamination machine is designed for laminating fiber glass, paper, PVC film, and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels, delivering professional-grade results with exceptional efficiency.
Product Specifications
Finished board type PVC laminated gypsum board
Effective laminating width 1300mm
Electric control system PLC system
Production capacity 2-6 million Sq.m/year
Operating speed 2-15m/min (adjustable)
Glue type Water Glue for PVC film
Warranty 1 year
After-sales service Engineers available to service
Automatic Gypsum Board Feeding Machine
The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, preparing them for PVC and aluminum film lamination.
Maximum load-bearing capacity 3000kg
Stroke 1500mm
Minimum height 620mm
Maximum height 2000mm
Platform size 1200×2400mm
Automatic Cutting Machine
Features two cutting systems: vertical/longitudinal cutting and horizontal cutting, equipped with a dust collector system. Cuts 1.2×2.4m large boards into 603×603mm/595×595mm small boards.
Cutting speed 15m/min
Cutting knife configuration Vertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power 17.15KW
Technical Specifications
  • Sheet thickness range: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Annual capacity: 2-6 million Sq.m
  • Compatible film materials: PVC film, aluminum foils, decorative materials
  • Board sheet materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
  • Stacking mode: 10 layers (4 packages/layer)
  • Cutting configuration: Lengthways: 3 blades, Horizontal: 5 blades
  • Overall dimensions: Length: 56000mm, Width: 9200mm
  • Lamination modes: Double side (laminate front and back at once) or Single side
600x600 Ceiling Tile Making Machine PLC Controlled Ceiling Tile Machine
