Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line

Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line

Brand Name:	LVJOE
Model Number:	LV-1300FM
MOQ:	1 Line
Price:	US $20000-200000
Supply Ability:	10 Lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

ISO CE SGS

Features:

High Automatic

Product Name:

Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line

Keyword:

Gypsum Ceiling Tile Manufacturing Plant,

Weight:

10T

Voltage:

380V, 50HZ

Power:

30KW To 100KW

Automatic Grade:

Automatic

Production Capacity:

2-6 Million Sq.m/year

Packaging Details:

standard package

Supply Ability:

10 Lines per year

Highlight:

fully automatic gypsum ceiling tile plant

gypsum ceiling tile production line with warranty

turnkey gypsum tile manufacturing plant 2 million sqm

Product Description

Turnkey Gypsum Ceiling Tile Manufacturing Plant

Complete turnkey solution for gypsum ceiling tile production with 2 million SQM annual output capacity and fully automatic production line.

Product Specifications

Attribute	Value
Weight	10T
Voltage	380V, 50HZ
Power	30KW to 100KW
Automatic Grade	Automatic
Features	High automatic
Production Capacity	2-4 million Sq.m/year

Product Description

Gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are used as ceiling tiles and partition wall panels.

Capacity

7,000-20,000 m² per day
(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/m², for 7mm board)

Automation

Simple operation with high degree of automation

Main Materials

Gypsum board
PVC film
Aluminum foil
Glue for PVC
Glue for aluminum

Product Dimensions

Length × Width: 595×595mm, 600×600mm, 603×603mm, 1200×600mm
Thickness: 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm

Gypsum Ceiling Board Lamination Machine Line

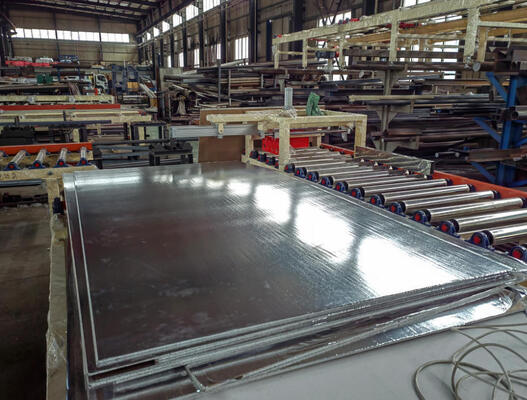

Gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board.

Lamination width: 1220mm
Gypsum board size: 1220×2440mm
Glue: specific glue for PVC film and aluminum foil
Max sheet speed: 2/15m/min
Thickness of sheet: 2-50mm
Motor power: 4.5kw coating and lamination part are driven by chain wheel

Automatic Feeding Machine

Two types available:

Push-type
Suction-type

Cylinder push with photoelectric control, Max.Cylinder range 700mm. Through push board platform rubber roller rolling transmission to accelerate speed. Features low cost, economic and affordable (compared to suction type), easy operation, and fully automatic feeding.

Automatic Cutting Machine

This machine cuts laminated gypsum boards to size according to saw gauge standard. Process: board is placed on delivery roll, moves to cutting system for first cut, turns to cutting system for second cut through delivery roll, then proceeds to board. Can be configured with pulsed sack-duster as required.

Lamination Machine Technical Parameters

Model	LV-1300SFM01	LV-1300SFM02	LV-1300SFM03
Max. Laminating Width	1300mm
Thickness of Sheet	5-30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating
