PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line with 3-15m/min Adjustable Speed 40-300mm Thickness and 950-1200mm Width

Brand Name:	Greenson
MOQ:	1
Price:	$790000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line Manufacturer

Keyword:

PU PIR Board Making Machinery Polyurethane Sandwich Panels Making Machine Continuously Line 3-15m/min Adjustable Speed Automatic

Place Of Origin:

Hebei, China

Color:

Customer's Requirement

OEM:

Yes

Feature:

Full-Automatic

Packaging Details:

Plastic Film

Port Of Dispatch:

Tianjin

Application:

Walls, Roofs And Partitions

Use:

Building Insulation Materials

Product Description

PUF PIR PU Rock Wool Sandwich Panel Machine Production Line Manufacturer

Product Overview

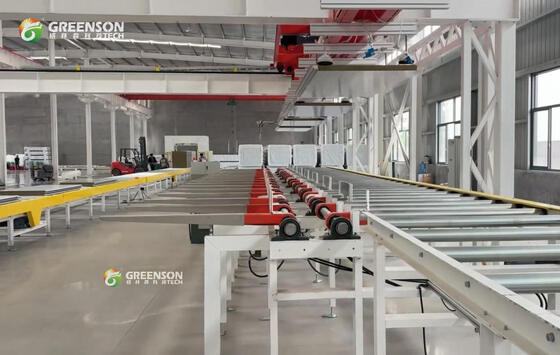

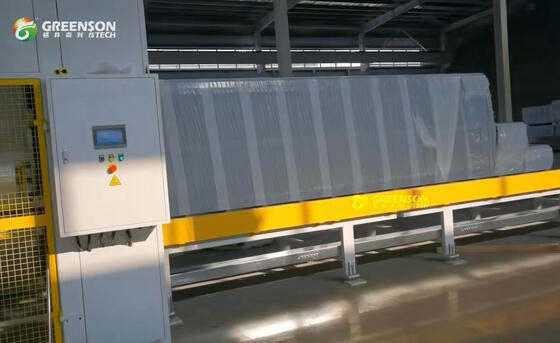

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

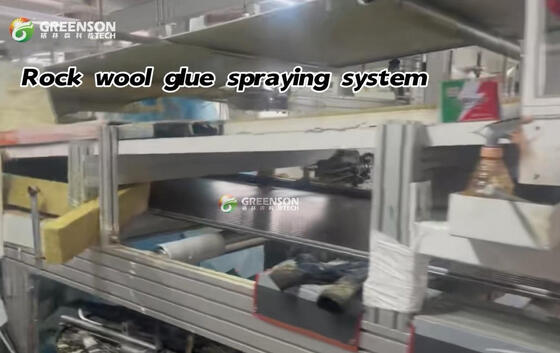

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

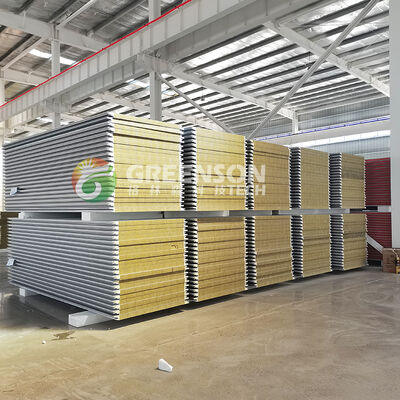

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
