Full Automatic Sandwich Panel Making Machine Production Line For Prefab Houses With 600-1200mm Width And Easy Operation

Full Automatic Sandwich Panel Making Machine Production Line For Prefab Houses With 600-1200mm Width And Easy Operation

Brand Name:	Greenson
MOQ:	1
Price:	$790000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Prefab House PU PIR Rock Wool Sandwich Panel Making Machine Production Line

Keyword:

Wall Panel Making Machine Cold Room Z-Lock PU Rock Wool Sandwich Panel Production Line

Color:

Customer's Requirement

Feature:

Full-Automatic

Packaging Details:

Plastic Film

Port Of Dispatch:

Tianjin

Core Components:

Motor, Bearing

Key Selling Points:

Easy To Operate

Finished Sandwich Panle Width:

600-1200mm

Highlight:

high performance rock wool production Lines

Mineral Wool Sandwich Panel Production Line

Line For Mineral Wool Board Cutting

Product Description

Prefab House PU PIR Rock Wool Sandwich Panel Making Machine Production Line

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

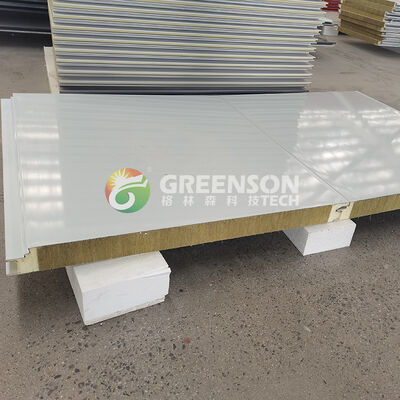

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Specification	Details
Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
