Full-Automatic Mineral Wool Sandwich Panel Machine for Easy To Operate Rock Wool Sandwich Panel Production Line with 40-300 mm Thickness

Full-Automatic Mineral Wool Sandwich Panel Machine for Easy To Operate Rock Wool Sandwich Panel Production Line with 40-300 mm Thickness

Brand Name:	Greenson
MOQ:	1
Price:	$700000-$800000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Mineral Wool Sandwich Panel Machine Industrial Cleanroom Panel Production Line

Keyword:

Acoustic Insulated Sandwich Panel Equipment

Color:

Customer's Requirement

Feature:

Full-Automatic

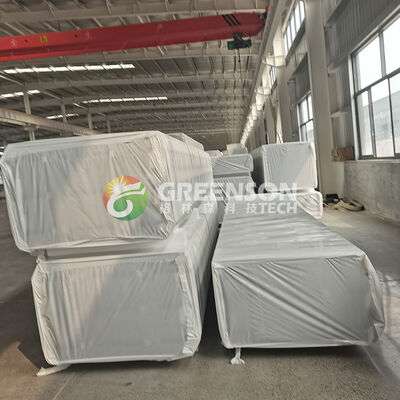

Packaging Details:

Plastic Film

Port Of Dispatch:

Tianjin

Core Components:

PLC, Engine, Bearing, Motor, Pump

Key Selling Points:

Easy To Operate

Facial Layer Material:

Pre-painted Galvanized Steel (PPGI) / Al-Zn Coated Steel

Substrate Thickness:

0.3mm - 0.8mm

Product Description

Mineral Wool Sandwich Panel Machine Industrial Cleanroom Panel Production Line

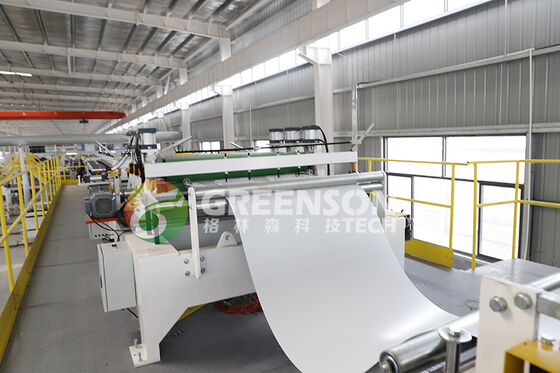

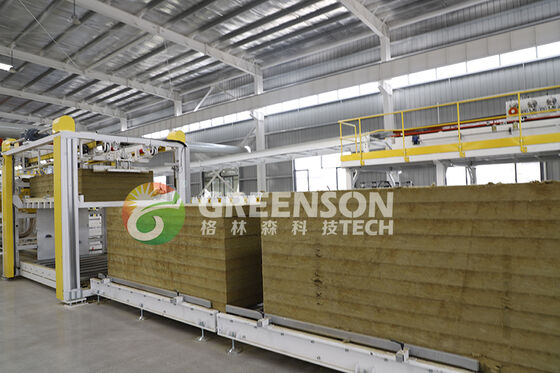

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Production Process

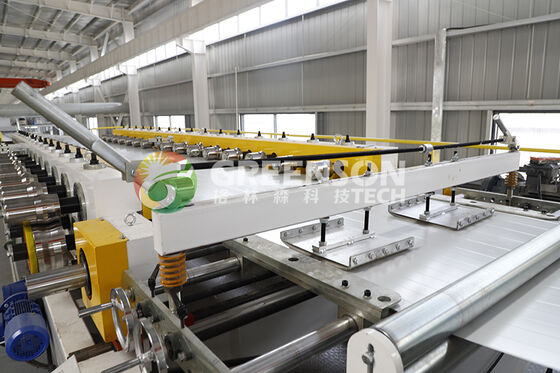

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
