High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

Brand Name:	Greenson
MOQ:	1
Price:	$790000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Keyword:

Fireproof Rock Wool Panel Production Line

Application:

Building

Color:

Customer's Requirement

OEM:

Yes

Feature:

Full-Automatic

Packaging Details:

Plastic Film

Port Of Dispatch:

Tianjin

Core Components:

PLC, Engine, Bearing, Motor, Pump

Key Selling Points:

Easy To Operate

Product Description

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Product Overview

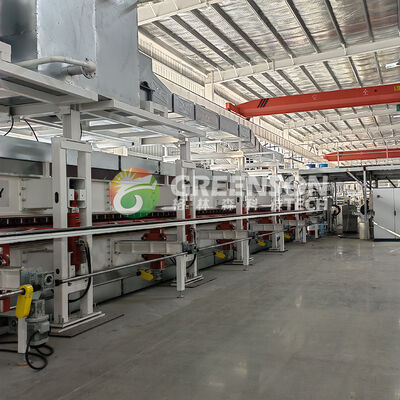

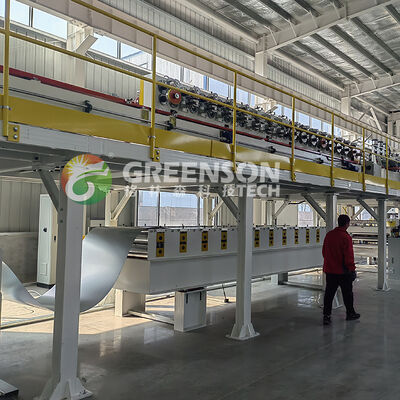

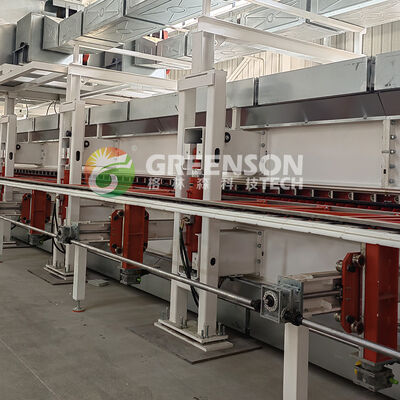

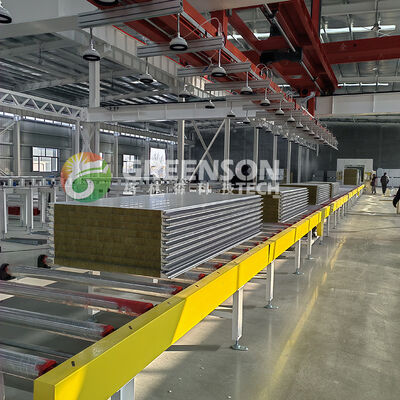

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

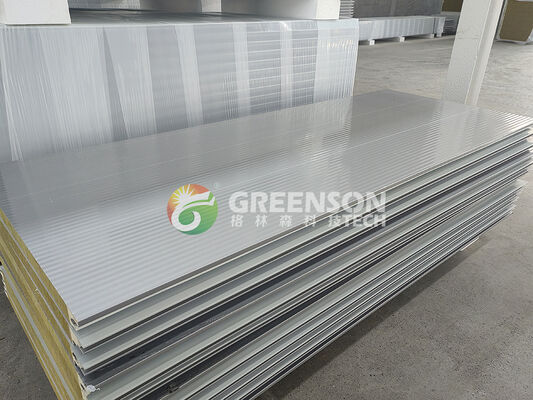

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
