High Output PVC Film Laminating Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity for Gypsum Ceiling Board Production

High Output PVC Film Laminating Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity for Gypsum Ceiling Board Production

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Product Name:

High Output PVC Film Laminating Machine For Gypsum Ceiling Board Production

Keyword:

Stable Quality Low Cost PVC Gypsum Board Laminating Production Line For Sale

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Production Capacity:

2-6 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Laminating Type:

Single+Double Sides

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

1300mm Effective Laminating PVC Film Laminating Machine

2-6 Million Sq.m/year Gypsum Ceiling Board Production Line

Adjustable Speed 2-15m/min Gypsum Board Laminating Machine

Product Description

High Output PVC Film Laminating Machine For Gypsum Ceiling Board Production

This automatic gypsum board lamination machine applies fiber glass, paper, PVC film and aluminum foil to gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Product Specifications

Specification	Details
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film
Laminating type	Single+Double Sides

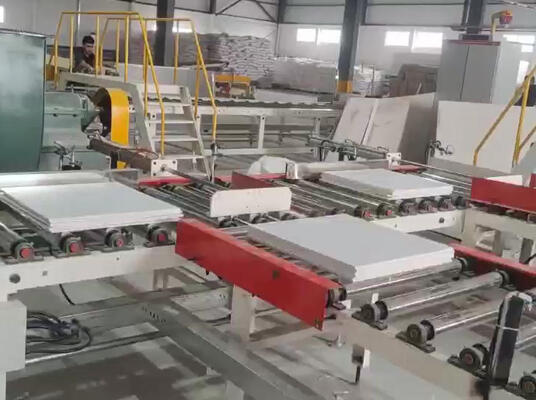

Production Process

Automatic feeding
Dust cleaning
PVC film and aluminum foil laminating
Film cutting (manual/automatic)
Conveying
Vertical cutting with dust collection
Horizontal cutting with dust collection
Small board stacking
Edge sealing
Stretch packing
Finished products stacking

Key Components

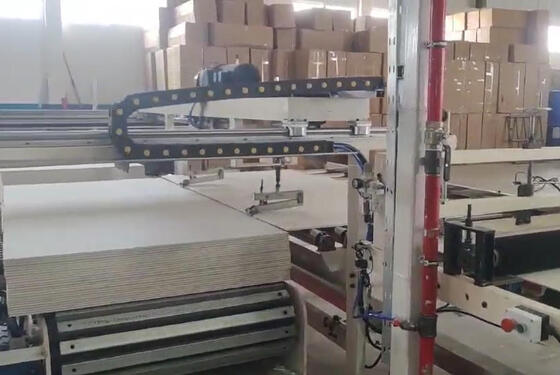

1. Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

2. Double Sided Laminating Machine

Effective lamination width: ≤ 1300mm
Thickness of sheet: 5-30mm
Lamination speed: 3-15m/min
Board feeding and releasing mode: automatic

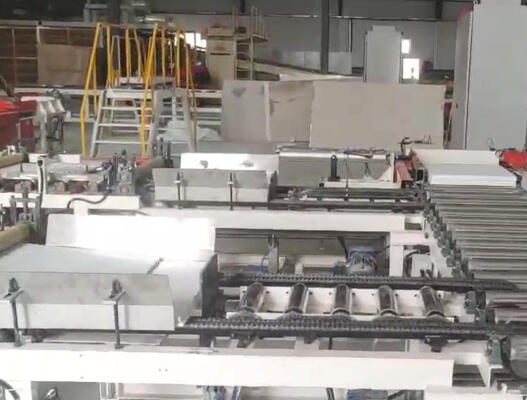

3. Automatic Cutting Machine

Includes vertical/longitudinal cutting and horizontal cutting systems with dust collector.

Cuts 1.2*2.4m boards to 603*603mm/595*595mm
Cutting speed: 15m/min
Cutting knives: vertical - 3 blades; horizontal - 5 blades
Overall power: 17.15KW

Technical Parameters

Parameter	Specification
Sheet thickness	5-30mm
Speed adjustment	Frequency conversion synchronous speed regulating
Annual capacity	2-6 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode	10 layers (4 packages/layer)
Cutting mode	Lengthways: 3 blades, horizontal: 5 blades
Overall dimension	Length: 56000mm, width: 9200mm
Lamination mode	Double side: laminate front and back simultaneously Single side: laminate one side at a time
