PLC Controlled Fully Automatic Lamination Machine for 2x2 PVC Gypsum Ceiling Tiles with 15m/min Speed

PLC Controlled Fully Automatic Lamination Machine for 2x2 PVC Gypsum Ceiling Tiles with 15m/min Speed

Brand Name:	Lvjoe
Model Number:	LV-1300SFM
MOQ:	1 set
Price:	US $20000-200000
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	10 plants per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE, SGS

Product Name:

Building Material PVC Coated Gypsum 2x2 Tile Making Machine Factory

Keyword:

Plaster 2x2 Tile Making Machine

Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

Brand New

Final Products:

PVC Gypsum Ceiling Tile

Size:

595*595， 603*603， 1200*600mm

Speed:

15m/min

Warranty:

1 Year

Packaging Details:

PE film wrapped

Supply Ability:

10 plants per year

Highlight:

PLC Controlled Gypsum Tile Making Machine

2x2 Tile PVC Gypsum Ceiling Tile Machine

15m/min Fully Automatic Lamination Machine

Product Description

PVC Coated Gypsum 2x2 Tile Making Machine

Professional manufacturing equipment for producing high-quality PVC laminated gypsum ceiling tiles with complete production line capabilities.

Product Specifications

Material	Gypsum board, PVC film, Aluminum Foil, Glue
Condition	Brand new
Final Products	PVC gypsum ceiling tile
Size	595×595mm, 603×603mm, 1200×600mm
Speed	15m/min
Warranty	1 year

Product Overview

This PLC controlled laminating machine is engineered for manufacturing premium PVC laminated gypsum ceiling tiles. The comprehensive production line includes lamination, cutting, edge sealing, and packing machines, available as individual units or as a fully integrated system tailored to your specific manufacturing requirements.

Finished Product Sizes

Standard dimensions: 595×595mm, 603×603mm, and 1200×600mm.

Key Technical Features

Laminate width: 1300mm
Gypsum board size: 1220×2400mm
Special adhesive: Formulated specifically for PVC film and aluminum foil bonding
Production speed: Adjustable from 2-15m/min
Material thickness capacity: 2-50mm
Motor power: 4.5kW (premium brand motor with frequency control)
Synchronized operation through chain wheel and chain transmission system
Machine dimensions: 12600×1950×1600mm

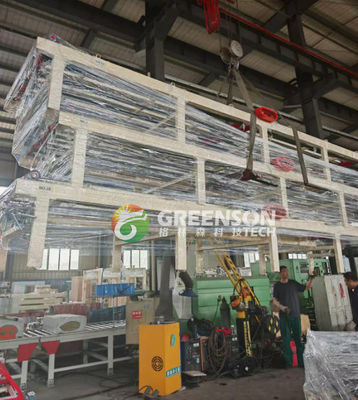

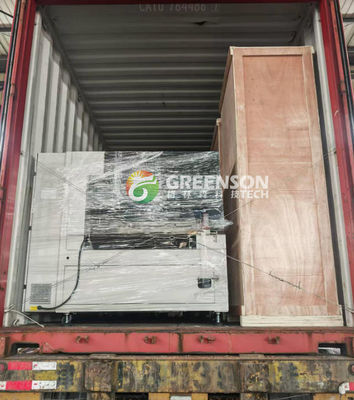

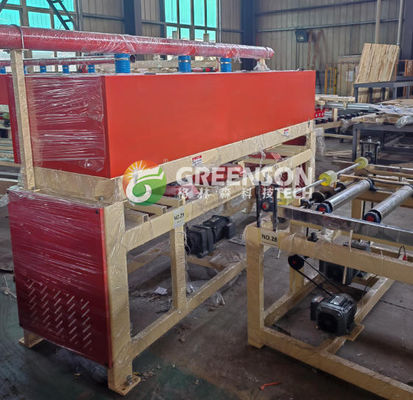

Machine Image
