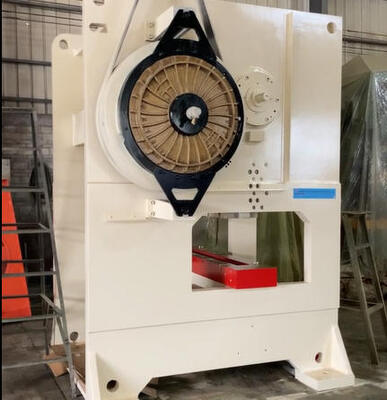

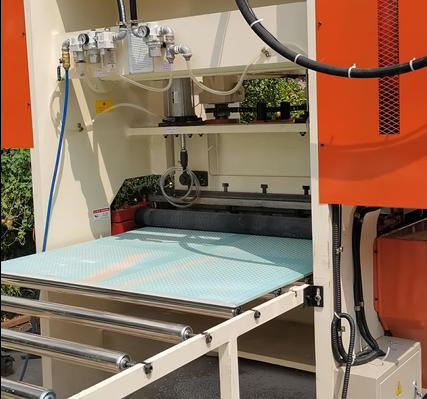

200T Pressure High Automatic Gypsum Board Punching Machine for Max 20mm Thickness Sheet Perforation

200T Pressure High Automatic Gypsum Board Punching Machine for Max 20mm Thickness Sheet Perforation

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE SGS

Product Name:

Adjustable Pitch Gypsum Board Punching Machine Gypsum Board Drilling Equipment

Keyword:

Gypsum Board Hole Drilling Machine

Pressure:

80T, 160T, 200T

Usage:

Gypsum Board, MDF, HPL, Fiber Cement Board Perforation

Holes:

Round, Square

Automatic Level:

High Automatic

Thickness:

Max. 20mm

Warranty:

1 Year

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

200T Pressure Gypsum Board Punching Machine

High Automatic Sheet Perforation Machine

Max 20mm Thickness Gypsum Board Drilling Equipment

Product Description

Adjustable Pitch Gypsum Board Punching Machine

High-performance gypsum board drilling equipment designed for precision perforation in various building materials.

Product Specifications

Pressure	80T, 160T, 200T
Usage	Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes	Round, Square
Automatic Level	High automatic
Thickness	Max. 20mm

Technical Specifications

Punching pressure: 200 ton
Stroke: 30 mm
Max mold height closed: 260mm
Number of strokes: 50 times/minute
Slide surface: 210*1100mm
Working table: 300*1670mm
Spacing of both pole: 1350mm (load the max board width 1220mm)
Power of main motor: 22kw
Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
Feeding accuracy: ±1mm
Maximum feeding rate: 100mm
Maximum feeding thickness: 20mm
Gross weight of machine: 11000kg
Overall dimension: 2300*1500*2300(H*L*W)

Applications

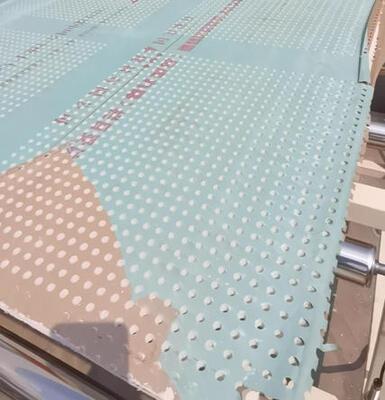

This perforation machine is designed for creating holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.
