Sheet Perforation Machine
Created with Pixso.

Automatic CNC Building Board Perforator with 200T Pressure and High Automatic Operation for Max 20mm Thickness

name

Automatic CNC Building Board Perforator with 200T Pressure and High Automatic Operation for Max 20mm Thickness

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Supply Ability: 50 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE SGS
Product Name:
Gypsum & Fiber Cement Board Dual-use Perforation Machine Automatic CNC Building Board Perforator
Keyword:
Automatic CNC Building Board Perforator
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Holes:
Round, Square
Automatic Level:
High Automatic
Thickness:
Max. 20mm
Host Power:
18KW
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

200T Pressure Sheet Perforation Machine

,

High Automatic Building Board Perforator

,

Max 20mm Thickness CNC Perforation Machine

Product Description
Gypsum & Fiber Cement Board Dual-use Perforation Machine
Automatic CNC Building Board Perforator designed for high-precision hole creation in various construction materials with advanced automation capabilities.
Product Specifications
Pressure Capacity 80T, 160T, 200T
Compatible Materials Gypsum Board, MDF, HPL, Fiber Cement Board
Hole Shapes Round, Square
Automation Level High Automatic
Maximum Thickness 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Maximum mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210×1100mm
  • Working table: 300×1670mm
  • Spacing of both pole: 1350mm (maximum board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang Yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimensions: 2300×1500×2300mm (H×L×W)
Applications & Materials
This high-performance perforation machine is engineered for creating precise holes in various construction and industrial materials including gypsum ceiling board, MgO board, MDF, HPL, fiber cement board, and metal sheets. Custom hole shapes are available to meet specific project requirements. Comprehensive operational training is provided with each machine.

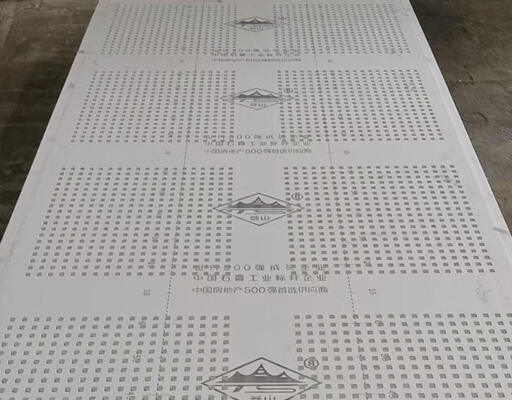

Finished Product Example
Automatic CNC Building Board Perforator with 200T Pressure and High Automatic Operation for Max 20mm Thickness 0
Key Advantage: Dual-use capability for both gypsum and fiber cement boards with high automation and precision feeding accuracy of ±1mm.
