200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine

200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Payment Terms:	T/T,L/C
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE SGS

Product Name:

Perforating Machine For Building Boards Cement Fiber Board Hole Drilling Machine

Keyword:

Gypsum Board Punching Equipment

Pressure:

80T, 160T, 200T

Usage:

Gypsum Board, MDF, HPL, Fiber Cement Board Perforation

Holes:

Round, Square

Automatic Level:

High Automatic

Thickness:

Max. 20mm

Host Power:

18KW

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

200T Pressure Perforating Machine

High Automatic Sheet Perforation Machine

Max 20mm Thickness Hole Drilling Machine

Product Description

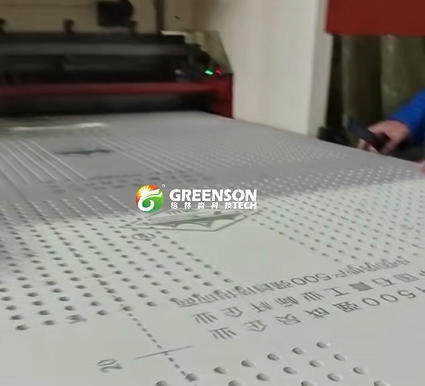

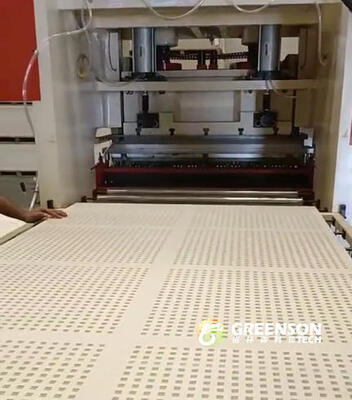

Perforating Machine for Building Boards and Cement Fiber Board

High-performance hole drilling machine designed for precision perforation in various building materials including gypsum board, MDF, HPL, and fiber cement board.

Product Specifications

Pressure Capacity	80T, 160T, 200T
Material Compatibility	Gypsum Board, MDF, HPL, Fiber Cement Board
Hole Shapes	Round, Square
Automation Level	High Automatic
Maximum Thickness	20mm

Technical Specifications

Punching pressure: 200 ton
Stroke: 30 mm
Maximum mold height closed: 260mm
Number of strokes: 50 times/minute
Slide surface: 210×1100mm
Working table: 300×1670mm
Pole spacing: 1350mm (maximum board width 1220mm)
Main motor power: 22kw
Servo motor power: 2.6kw (brand: Zhejiang Yifeng)
Feeding accuracy: ±1mm
Maximum feeding rate: 100mm
Maximum feeding thickness: 20mm
Gross machine weight: 11000kg
Overall dimensions: 2300×1500×2300mm (H×L×W)

Applications

This precision perforation machine is engineered for creating accurate holes in multiple materials including gypsum ceiling board, MgO board, MDF, HPL, fiber cement board, and metal sheets. Custom hole shapes are available to meet specific project requirements. Comprehensive operational training is provided with each machine.

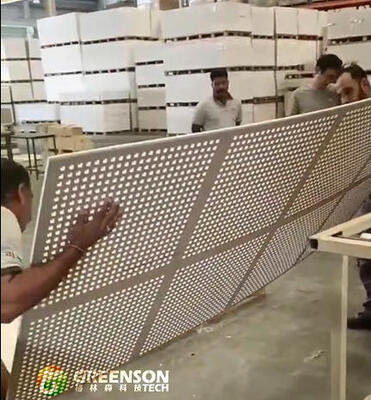

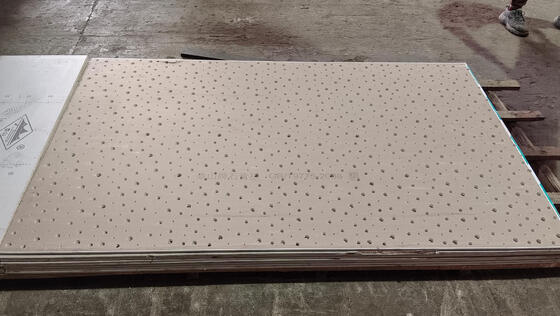

Finished Product Example

Custom Solutions Available: Our perforating machines can be configured with custom hole patterns and shapes to meet your specific manufacturing requirements.
