products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Mineral Wool Board Production Line
Created with Pixso.

Industrial Grade High Density Rock Wool Board Production Line with 80-200kg/m3 Raw Material Density PLC Control System and 380V/50Hz Power Supply

name

Industrial Grade High Density Rock Wool Board Production Line with 80-200kg/m3 Raw Material Density PLC Control System and 380V/50Hz Power Supply

Brand Name: Greenson
Model Number: Fireproof rock wool production line heat isolation
MOQ: 1
Price: US $2000000-4000000
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
hebei
Product Name:
Industrial Grade High Density Rock Wool Board Production Line
Keyword:
Basalt Rock Wool Insulation Panel Manufacturing
Fuel:
Coal, Gas
Raw Material Density:
80-200kg/m3
Voltage:
380V/50HZ Or Customized
Raw Material Thickness:
50-200mm
Main Process:
Mixing, Forming, Water Cutting, Drying
Power Supply:
380V, 50Hz
Advantages:
High Efficent
Usage:
Wall Panel, Sandwich Wall Panel
Highlight:

80-200kg/m3 Raw Material Density Rock Wool Board Production Line

,

PLC Control System Mineral Wool Board Production Line

,

380V/50Hz Power Supply Basalt Wool Board Production Line

Product Description
Industrial Grade High Density Rock Wool Board Production Line
Our fireproof rock wool production line manufactures high-quality insulation materials from basalt and dolomite. Through high-temperature melting and centrifugal fiberization, we produce lightweight, thermally efficient, and flame-retardant rock wool products suitable for various industrial applications.
Product Specifications
Attribute Value
Product Name Fireproof rock wool production line heat isolation
Fuel Coal, Gas
Raw Material Density 80-200kg/m³
Production Line Width 10-20m
Voltage 380V/50HZ or customized
Raw Material Thickness 50-200mm
Main Process Mixing, forming, water cutting, drying
Control System PLC
Finished Products Rock wool mattress and board
Production Process
RAW MATERIAL FEEDING SYSTEM
Raw materials are transported to the site, stored under roof protection, and conveyed indoors via enclosed systems to silos. Materials are individually weighed and mixed before entering the furnace.

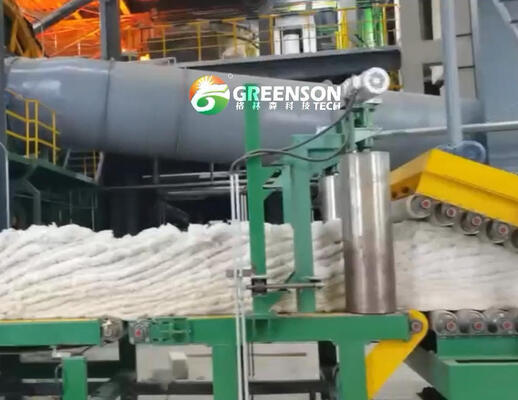

CRIMPING & PRESSING MACHINE
Mineral wool is uniformly layered to desired thickness and density, configured for either batts or boards production.

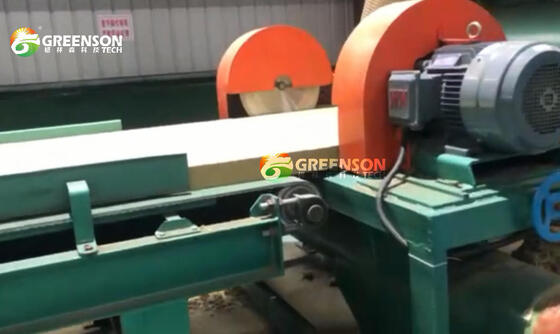

LONGITUDINAL CUTTING MACHINE
Precision vertical cutting produces standard 60cm dimensions, with 1.2m and 2.4m machine specifications available.

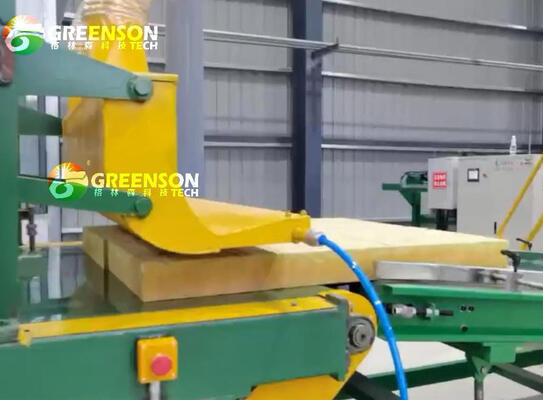

FILM SHRINKAGE TYPE PACKING MACHINE
Finished products are stacked, wrapped in polyethylene film, and palletized for storage and transportation.
Technical Parameters
Parameter Specification
Automatic Grade Automatic
Panel Thickness 30-150mm
Felt Size 1000mm (adjustable)
Panel Density 30-200 Kg/m³
Applicable Industries Manufacturing Plant, Retail, Construction
Industrial Grade High Density Rock Wool Board Production Line with 80-200kg/m3 Raw Material Density PLC Control System and 380V/50Hz Power Supply 0
