High Density Rock Wool Production Line with Class A1 Fire Resistance and 10000-50000tons/year Capacity

High Density Rock Wool Production Line with Class A1 Fire Resistance and 10000-50000tons/year Capacity

Brand Name:	Greenson
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Higher Density Rock Wool Materials A1 Certification Rock Insulation Wool Production Line

Keyword:

Stone Wool Production Plant

Production Capacity:

10000-50000tons/year

Thickness:

50-200mm

Density:

100-200kg/m3

Main Process:

Mixing, Forming, Water Cutting, Drying

Fire Resistance:

Class A1

Length:

1200-2400mm

Width:

600-1200mm

After-Sales Service:

Engineers Available To Service Machinery Overseas

Highlight:

100-200kg/m3 Density Rock Wool Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

10000-50000tons/year Capacity Stone Wool Production Plant

Product Description

Higher Density Rock Wool Materials A1 Certification Rock Insulation Wool Production Line

This advanced production line manufactures high-density rock wool insulation materials with A1 fire certification. The system processes raw materials into premium insulation products through a sophisticated automated process.

Production Process Overview

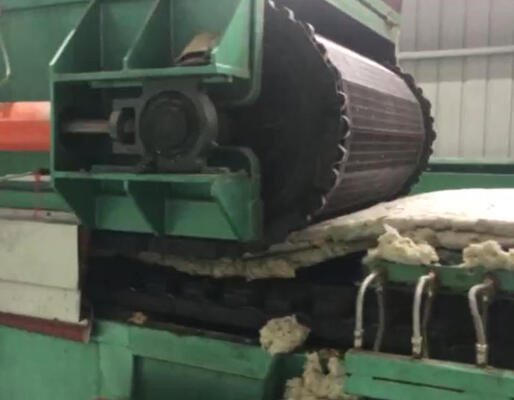

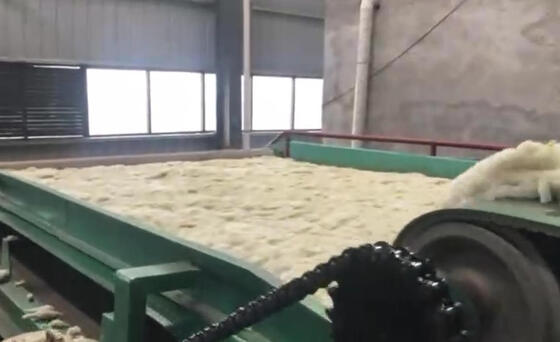

Raw materials including basalt, dolomite, and binders are loaded into the hopper via elevator. The materials are heated and melted in the furnace, then transferred to the melt flow tank. The molten lava is cooled and spun into fibers by the centrifuge, then sprayed into the fiber molding chamber where binders are added. Fibers are drawn down to the mesh belt by negative pressure wind to form the original felt.

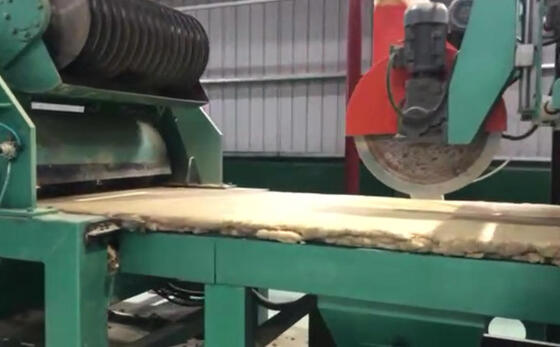

The mesh belt transports the original felt to the pendulum cloth machine for uniform distribution. The felt then moves to the curing furnace via conveyor, running between upper and lower chain belts. Hot air blowers circulate heated air throughout the curing furnace to solidify the cotton felt. The solidified products undergo precision cutting - first longitudinal then transverse - before final packaging and storage.

Technical Specifications

Specification	Details
Application	Manufacture Rock Wool Blanket, Rock Wool Board
Capacity	10,000 - 80,000 tons/year (Available in increments of 10,000 tons/year)
Raw Materials	Basalt, dolomite, binders and related compounds
Main Energy Supply Systems	Raw coal energy supply system Power energy supply system Natural gas energy supply system
