Energy Saving PLC Control Light Weight Stone Wool Production Line for Mineral Wool Board Manufacturing

Energy Saving PLC Control Light Weight Stone Wool Production Line for Mineral Wool Board Manufacturing

Brand Name:	Greens
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Energy Saving Stone Wool Production Line Manufacturer

Keyword:

Basalt Mineral Wool Insulation Production Line

Color:

Choose

Voltage:

380v Or Customized

Electric Control:

PLC Control

Condition:

New

Weight (KG):

300000

Advantages:

Light Weight, Fire Proof

Highlight:

Energy Saving Stone Wool Production Line

PLC Control Mineral Wool Board Production Line

Light Weight Rock Wool Production Line

Product Description

Energy Saving Stone Wool Production Line

Stone wool products are manufactured from high-quality basalt, dolomite, and other raw materials. Through high-temperature melting and high-speed centrifugation using a four-axis centrifuge, materials are transformed into fibers. During this process, binders, dustproof oil, and water repellents are precisely applied. The fibers are collected, then cured and cut using pendulum and three-dimensional fiber laying methods to create rock wool products in various specifications and applications. As inorganic fibers processed through high-temperature melting, rock wool products offer lightweight construction, low thermal conductivity, excellent insulation properties, and superior flame retardancy, making them widely applicable across multiple industries.

Technical Specifications

Product Name	Stone Wool Production Line
Automatic Grade	Automatic
Voltage	380V
Features	Automatic
Panel Thickness	30-200mm
Felt Size	1000mm (adjustable)
Panel Density	30-200 Kg/m³
Applicable Industries	Manufacturing Plant, Retail, Construction Works
Finished Products	Rock Wool Board
Usage	Building Material Production

Production Process Overview

Raw Material Feeding System

Raw materials (stones) are transported to the site by truck, stored under protective roofing, and conveyed indoors via enclosed conveyors to silos. Materials undergo individual weighing and precise mixing before entering the furnace.

Centrifuge Machine

Melted material flows from the furnace onto spinning wheels. Fibers are drawn from the spinning wheels using powerful airflow and injected into the spinning chamber for further processing.

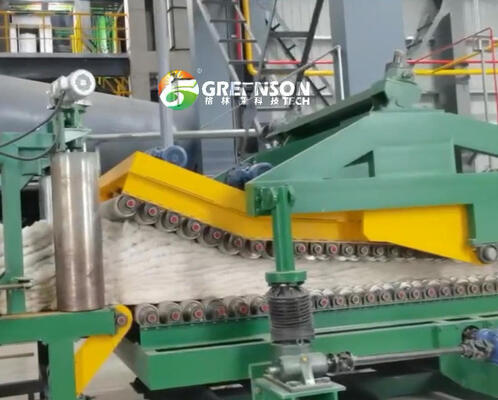

Crimping Machine & Pressing Machine

Mineral wool is uniformly layered to achieve the desired thickness. Depending on the product type (batts or boards), mineral wool fibers are configured as either single or dual density structures.

Longitudinal Cutting Machine

In the cutting area, vertical cuts are made to achieve standard dimensions of 60cm. Two machine specifications are available: 1.2m and 2.4m models to accommodate different production requirements.

Film Shrinkage Type Packing Machine

Finished products are systematically stacked, wrapped in protective polyethylene film, and palletized before transportation to the finished goods storage area.
