Automatic PVC Lamination Machine for Gypsum Board with 1300mm Effective Laminating, PLC System, and 2-6 Million Sq.m/year Capacity

Automatic PVC Lamination Machine for Gypsum Board with 1300mm Effective Laminating, PLC System, and 2-6 Million Sq.m/year Capacity

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Product Name:

High Quality Automatic Pvc Lamination Machine Gypsum Board Veneer Laminate Machine

Keyword:

PVC Film Laminating Machine For MDF Panel Boards

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-6 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

1300mm Effective Laminating PVC Lamination Machine

PLC System Gypsum Board Laminating Machine

2-6 Million Sq.m/year Gypsum Ceiling Tile Production Line

Product Description

High Quality Automatic PVC Lamination Machine for Gypsum Board Veneer

This advanced automatic PVC lamination machine is designed for laminating fiber glass, paper, PVC film, and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels, delivering professional-grade results with exceptional efficiency.

Product Specifications

Finished board type	PVC laminated gypsum board
Effective laminating width	1300mm
Electric control system	PLC system
Production capacity	2-4 million Sq.m/year
Operating speed	2-15m/min (adjustable)
Glue type	Water Glue for PVC film
Warranty	1 year
After-sales service	Engineers available to service

Automatic Gypsum Board Feeding Machine

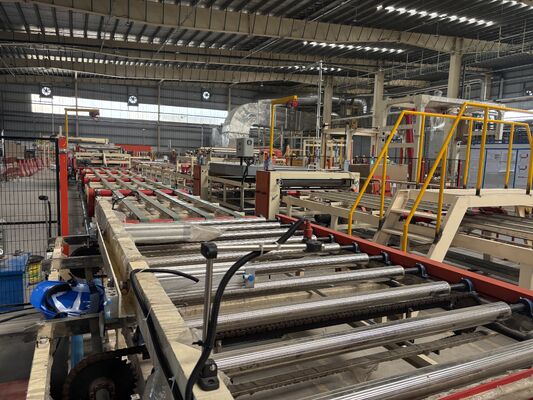

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, preparing them for PVC and aluminum film lamination.

Maximum load-bearing capacity	3000kg
Stroke	1500mm
Minimum height	620mm
Maximum height	2000mm
Platform size	1200×2400mm

Automatic Cutting Machine

Features two cutting systems: vertical/longitudinal cutting and horizontal cutting, equipped with a dust collector system. Cuts 1.2×2.4m large boards into 603×603mm/595×595mm small boards.

Cutting speed	15m/min
Cutting knife configuration	Vertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power	17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board sheet materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Cutting configuration: Lengthways: 3 blades, Horizontal: 5 blades
Overall dimensions: Length: 56000mm, Width: 9200mm
Lamination modes: Double side (laminate front and back at once) or Single side
