2.4m Rock Wool Panel Production Line with 1200-2400mm Board Width, PLC Control, and 80-200kg/m3 Raw Material Density

2.4m Rock Wool Panel Production Line with 1200-2400mm Board Width, PLC Control, and 80-200kg/m3 Raw Material Density

Brand Name:	Greens
Model Number:	Rock Wool Machine
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

2.4m Rock Wool Panel Production Line For Thermal Roof Insulation Construction Material Making Machinery

Keyword:

Mineral Wool Insulation Board Production Line

Control System:

PLC Control

Raw Material Density:

80-200kg/m3

Material:

Basalt, Dolomite

Power Supply:

380V/50Hz

Voltage:

380v Or Customized

Board Width:

1200-2400mm

Packaging Details:

Wooden Crate Packaging

Highlight:

1200-2400mm Board Width Rock Wool Panel Production Line

PLC Control Mineral Wool Board Production Line

80-200kg/m3 Raw Material Density Rock Wool Making Machine

Product Description

2.4m Rock Wool Panel Production Line For Thermal Roof Insulation Construction Material Making Machinery

The Mineral Wool Board Production Line is a cutting-edge solution designed for efficient and precise manufacturing of high-quality mineral wool boards. This state-of-the-art production line incorporates advanced technology to ensure optimal performance and productivity in industrial insulation material production.

Technical Specifications

Condition	New
Board Width	1200-2400mm
Board Length	Unlimited
Control System	PLC Control
Voltage	380V or Customized
Curing Method	High Temperature and Pressure
Power Supply	380V/50Hz
Application	Insulation Board Production
Raw Material Density	80-200kg/m³
Warranty	1 Year

Production Process Overview

Raw Material Feeding System

Raw materials (stones) are transported to the site by truck, stored under protective roofing, and conveyed indoors via enclosed conveyors to silos. Materials are individually weighed and mixed before entering the furnace for processing.

Centrifuge Machine

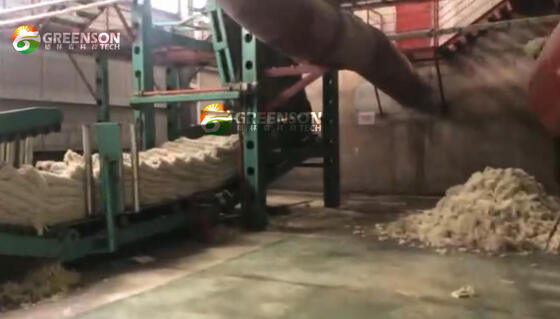

The melt flows from the furnace and is applied to spinning wheels. Fibers are drawn from the spinning wheels with powerful airflow and injected into the spinning chamber for fiber formation.

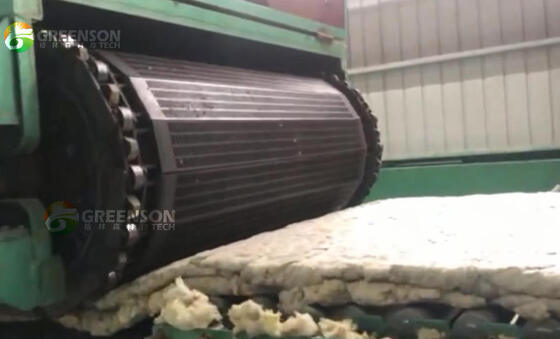

Crimping Machine & Pressing Machine

Mineral wool is uniformly layered to achieve the desired thickness. Depending on the product specification (batts or boards), the mineral wool fibers are configured as either single or dual density structures.

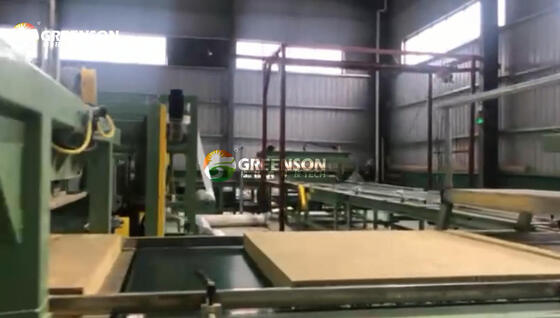

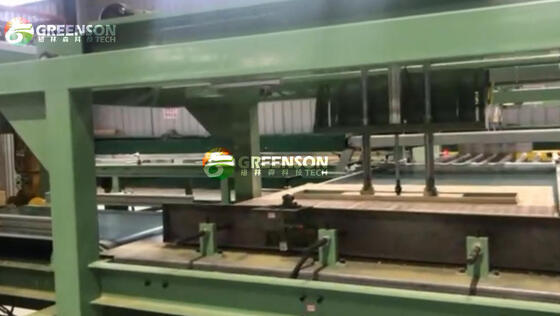

Longitudinal Cutting Machine

In the cutting area, vertical cuts are made into standard dimensions of 60cm. Two machine specifications are available to accommodate production requirements: 1.2m and 2.4m configurations.

Film Shrinkage Type Packing Machine

Finished products are systematically stacked, wrapped in protective polyethylene film, and palletized before transportation to the finished goods storage area.
