Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance

Name: Mineral Rock Wool Production Line with 380V/50Hz Power Supply 1 Year Warranty and Class A1 Fire Resistance
Brand: Hebei Greens Building Material Technology Development Co.,Ltd
SKU: Rock Wool Production Line
Price: 3,000,000.00 USD
Availability: InStock

Brand Name:	Greens
Model Number:	Rock Wool Production Line
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Machines For Making Other Building Materials Mineral Rock Wool Production Line Factory

Keyword:

Mineral Stone Wool Production Line

Main Process:

Raw Material Supply System,Melting System(Cupola Furnace),Fiber Forming System,Wool Cellecting And Allocating System,Board Forming System,Cutting System,Automatic Stacking And Packing System

Raw Materials:

Basalt、Dolomite、slag

Control System:

PLC

Power Supply:

380V/50Hz

Installation:

Engineers Available To Service Machinery Overseas

Warranty:

1 Year

Packaging Details:

Wooden Crate Packaging

Highlight:

380V/50Hz Mineral Rock Wool Production Line

1 Year Warranty Rock Wool Board Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Product Description

Mineral Rock Wool Production Line Factory

Production Process Overview

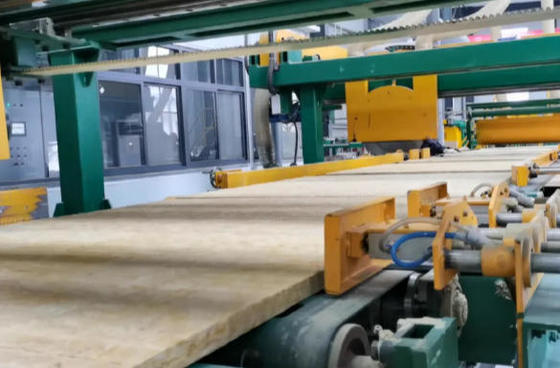

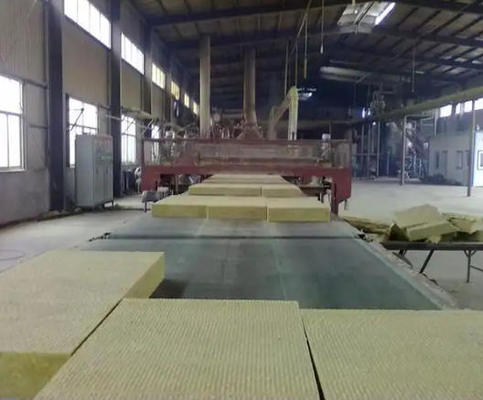

The rock wool production process begins with raw materials including basalt, dolomite, and binders. These materials are loaded into the hopper via elevator and melted in a furnace. The molten lava flows into a tank, where it's cooled and spun into fibers by a centrifuge. During fiber formation, binders are sprayed into the fiber molding chamber while negative pressure wind helps shape the fibers. The resulting fiber mat is transported via mesh belt to a pendulum cloth machine, then through a curing furnace where hot air solidifies the material. The final product undergoes precision cutting (both longitudinal and transverse) before packaging and storage.

Primary Applications

Rock wool is extensively used for fireproofing and sound absorption in partition/curtain walls, thermal insulation for roofs and retaining structures, geothermal systems, and industrial applications including kilns, ovens, and large tanks/vessels requiring both insulation and fire resistance.

Product Specifications

Width: 1,000mm or 1,200mm
Length: 1,000mm (adjustable)
Thickness: 30-150mm
Density: 40-200kg/m³

Technical Parameters

Parameter	Value
Fiber diameter	5-8um
Shot content	6-8%
Max. application temperature	600°C
