products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Mineral Wool Board Production Line
Created with Pixso.

Customizable Automatic Rock Wool Production Line with 380V/50Hz Power Supply and 1 Year Warranty for 30-150mm Panel Thickness

Name

Customizable Automatic Rock Wool Production Line with 380V/50Hz Power Supply and 1 Year Warranty for 30-150mm Panel Thickness

Brand Name: Greens
Model Number: Rock Wool Production Line
MOQ: 1
Price: US $2000000-4000000
Payment Terms: TT,LC
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Advanced Customizable Automatic Rock Wool Production Line For Insulation Solutions
Keyword:
Mineral Stone Wool Production Line
Main Process:
Raw Material Supply System,Melting System(Cupola Furnace),Fiber Forming System,Wool Cellecting And Allocating System,Board Forming System,Cutting System,Automatic Stacking And Packing System
Raw Materials:
Basalt、Dolomite、slag
Control System:
PLC
Power Supply:
380V/50Hz
Installation:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Packaging Details:
Wooden Crate Packaging
Highlight:

380V/50Hz Rock Wool Production Line

,

1 Year Warranty Mineral Wool Board Production Line

,

30-150mm Panel Thickness Rockwool Panel Production Line

Product Description
Advanced Customizable Automatic Rock Wool Production Line For Insulation Solutions

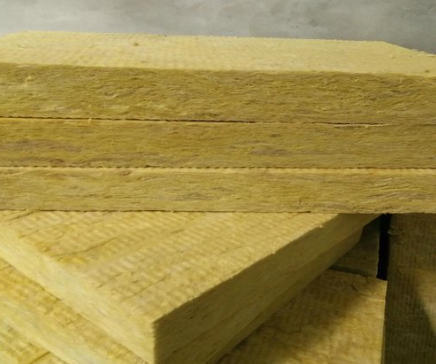

Rock wool board uses high-quality basalt as raw material whose melting point is above 1000 ºC, offering excellent heat insulation and sound absorption properties. It features fire resistance, pest proofing, corrosion resistance, stable chemical properties, and is asbestos-free for human safety.

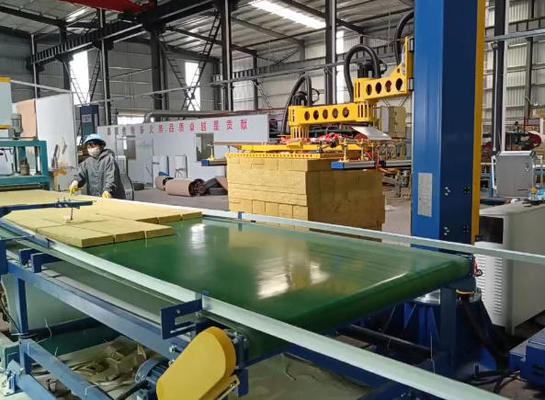

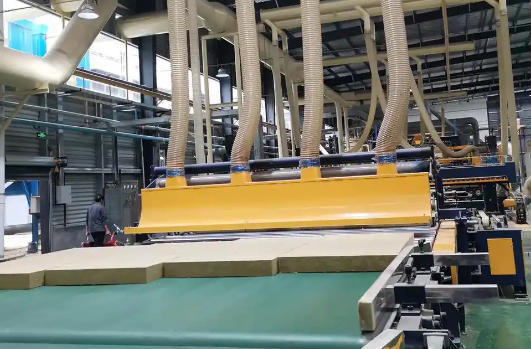

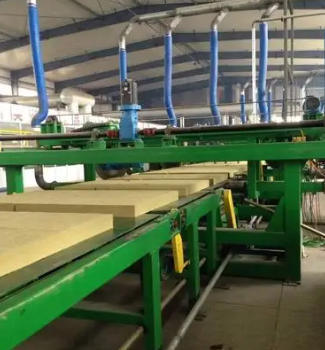

Rock wool products are manufactured from premium basalt and dolomite. The production process involves high-temperature melting, centrifugal fiber formation using a four-axis centrifuge, and the addition of binders, dustproof oil, and water repellent. The fibers are collected, cured, and precisely cut using pendulum and three-dimensional fiber laying methods to create various rock wool products.

Key Advantages:
  • Lightweight with low thermal conductivity
  • Superior heat insulation and flame retardancy
  • Wide industrial applications
  • Customizable specifications for diverse needs
Product Name Rock Wool Production Line
Automatic Grade Automatic
Voltage 380V
Features Automatic
Panel Thickness 30-150mm
Felt Size 1000mm (adjustable)
Panel Density 30-200 Kg/m3
Applicable Industries Manufacturing Plant, Retail, Construction works
Finished Products Rock wool mattress and board
Usage Building Material Production
Customizable Automatic Rock Wool Production Line with 380V/50Hz Power Supply and 1 Year Warranty for 30-150mm Panel Thickness 0
