Automatic Rock Wool Production Line with Adjustable Felt Size 1000mm and 2-40 m/min Line Speeds

Automatic Rock Wool Production Line with Adjustable Felt Size 1000mm and 2-40 m/min Line Speeds

Brand Name:	Greens
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Machinery For Construction Material Stone Wool Production Line Factory

Keyword:

Mineral Wool Production Line

Voltage:

380v Or Customized

Condition:

New

Automatic Grade:

Automatic

Utility Requirements:

Natural Gas\Water\electricity

Felt Size:

1000mm (adjustable)

Line Speeds:

2-40 M/min

Highlight:

Adjustable Felt Size Rock Wool Production Line

1000mm Felt Size Mineral Wool Board Production Line

2-40 m/min Line Speeds Stone Wool Production Line

Product Description

Machinery For Construction Material Stone Wool Production Line Factory

The rock wool production line utilizes an electric furnace to melt raw materials. Raw materials including basalt, blast furnace hard slag, and dolomite are dried and stored in silos before being automatically weighed and fed into the furnace through a charging pipe. The system allows for recycling of slag balls and waste slag back into the production process.

Production Process

The molten material flows through a guided channel into a high-speed four-roller centrifuge, where it undergoes fibrillation under combined centrifugal force and high-speed airflow. The fibers are then blown to a cotton collector, forming a primary felt under negative pressure. This felt is transported via conveyor to the pendulum machine for further processing.

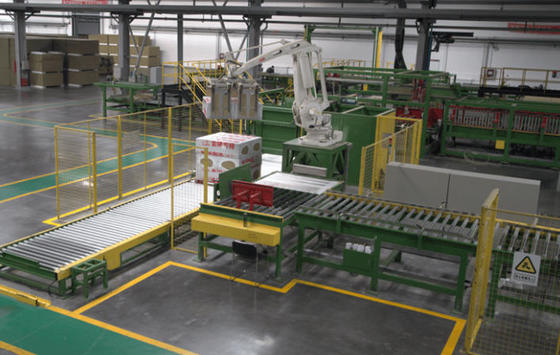

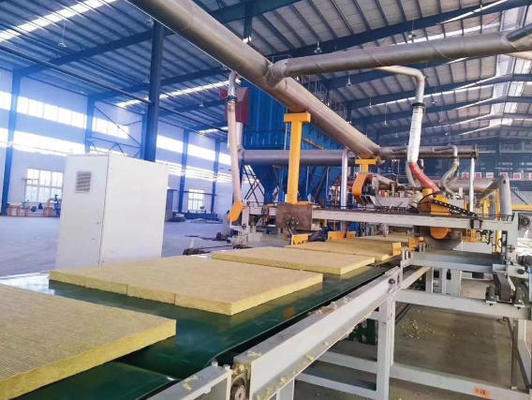

Before entering the curing furnace, the secondary felt undergoes compression via pleating and pressurizing machines to enhance strength. After curing, cooling, and various cutting processes (including longitudinal, online, thickness, and cross-cutting), the rock wool boards are automatically stacked, packaged with heat-shrinkable film, palletized by robots, and stored.

Technical Specifications

Product Name	Rockwool Panel Production Line
Automatic Grade	Automatic
Voltage	380V
Panel Thickness	30-200mm
Felt Size	1000mm (adjustable)
Panel Density	30-200 Kg/m3
Applicable Industries	Manufacturing Plant, Retail, Construction works

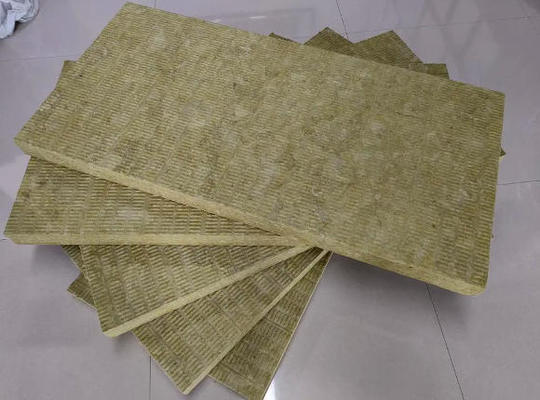

Finished Products	Rock wool board
Usage	Building Material Production

Our Services

1. Professional installation and debugging teams to ensure equipment produces qualified products at customer sites

2. Year-round supply of accessories with one-year equipment guarantee

3. Continuous technical consultation and support to resolve any technical issues

4. Assistance with consignment and import/export procedures

5. On-site production engineer support when needed, with options for long-term cooperation
