Gypsum Ceiling Tile Production Line
Created with Pixso.

Automatic 55kw 380V Gypsum Ceiling Tile Production Line for PVC Laminated Gypsum Board

Name

Automatic 55kw 380V Gypsum Ceiling Tile Production Line for PVC Laminated Gypsum Board

Brand Name: Greens
Model Number: LV--1300SFM(01/02/03)
MOQ: 1 Line
Price: US $20000-200000
Supply Ability: 10 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei, China (Mainland)
Certification:
ISO CE,
Product Name:
Building Materials Production Machine PVC Vinyl Faced Gypsum Board Waterproof False Ceiling Tiles Machine
Keyword:
60x60 PVC Laminated Gypsum Ceiling Making Machine
Power(W):
55kw
Annual Capacity:
2-6million Sqm
Color:
Customised
Application:
Film, Machinery Production
Raw Material:
Pvc Film ,gypsum Board, Pet Film
Automatic Grade:
Automatic
Usage:
Laminate Gypsum Board
Voltage:
380V
Packaging Details:
standard package
Supply Ability:
10 lines per year
Highlight:

55kw Gypsum Ceiling Tile Production Line

,

380V PVC Laminated Gypsum Board Machine

,

Automatic Gypsum Board Lamination Machine

Product Description
PVC Vinyl Faced Gypsum Board Waterproof False Ceiling Tiles Machine
Advanced building materials production machine for manufacturing waterproof false ceiling tiles with PVC vinyl facing.
Product Specifications
Attribute Value
Power 55kw
Annual Capacity 2-8 million sqm
Color Customized
Application Film, machinery production
Plastic Processed PVC
Raw Material PVC film, gypsum board, PET film
Automatic Grade Automatic
Usage Laminate gypsum board
Voltage 380V
Weight Based on models
Product Overview

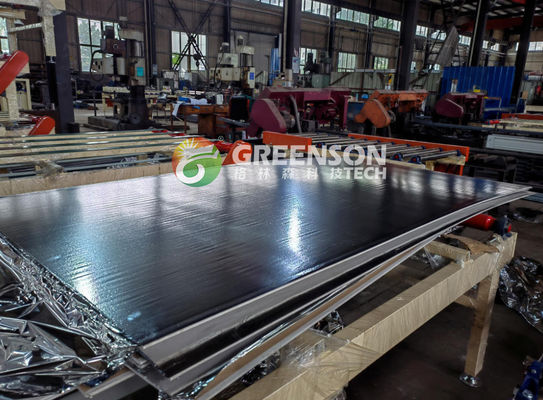

This advanced gypsum board automatic cutting machine features the latest double-sided coating and laminating technology, enabling simultaneous coating and gluing of both front (PVC) and reverse sides (aluminum foils) without requiring turn-over.
Key Features
  • Capacity: 7000-12000m² per day (based on standard board dimensions)
  • Automation: Simple operation with high degree of automation
  • Material Compatibility: Works with gypsum board, PVC film, aluminum foil, and specialized adhesives
  • Product Dimensions: Multiple standard sizes available (595×595mm to 1200×600mm)
  • Thickness Range: 7.0mm to 9.0mm
Technical Parameters
Model LV-1300SFM01 LV-1300SFM02 LV-1300SFM03
Max. Laminating Width 1300mm
Thickness Range 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed Power 8kw 10kw 20kw
System Components

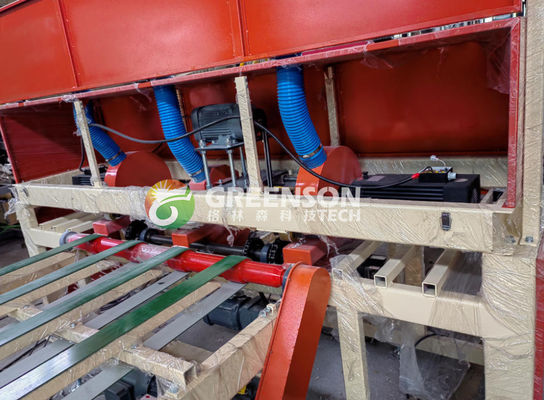

1. Gypsum Ceiling Board Lamination Machine
Specialized equipment for laminating film on gypsum board with 1220mm laminating width.
  • Standard gypsum board size: 1220×2440mm
  • Specialized adhesives for PVC film and aluminum foil
  • Max sheet speed: 2-15m/min
  • Thickness range: 2-50mm
  • Motor power: 4.5kw
2. Automatic Feeding Machine
Available in two types for different application needs.
  • Push-type with cylinder operation (700mm max range)
  • Suction-type for alternative applications
  • Features photoelectric control and rubber roller transmission
  • Cost-effective solution with fully automatic operation
3. Automatic Cutting Machine
Precision cutting system for laminated gypsum boards to standard sizes.
  • Features dual cutting system with pulsed sack-duster option
4. Automatic Sealing Machine
Right-angle type gypsum board sealing equipment.
  • PLC photoelectric automatic control
  • High-speed operation with tight, firm edging
  • Quick setup and minimal equipment investment
5. Automatic Shrinking Machine
Heat shrinking system for final packaging.
  • Infrared ray heating technology
  • Packaging speed: 20m/min
  • Weight: 500KG
  • Power: 18.75KW
6. Electrostatic Pulse Bag Style Dust Collector
Efficient dust collection system for clean operation.
  • Large dust exhaust fan and pipe system
  • Complete system includes collector frame, motor, pipes, and pulse controller
  • Effective dust removal for clean operation
Automatic 55kw 380V Gypsum Ceiling Tile Production Line for PVC Laminated Gypsum Board 0
