Full Automatic Double Side Gypsum Board Laminating Machine with 1300mm Effective Laminating and PLC System for Ceiling Tile Production Line

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Product Name:

Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

Keyword:

Gypsum Ceiling Tiles Making Machine

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-6 Million Sq.m/year

After-sales Service:

Engineers Available To Service

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Product Description

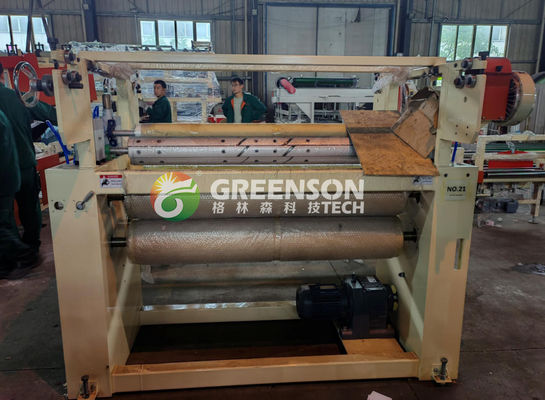

Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

This fully automatic advanced double side laminating machine is designed for producing PVC laminated gypsum board used as ceiling tiles and partition wall panels. The system laminates various materials including fiber glass, paper, PVC film, and aluminum foil onto gypsum boards.

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

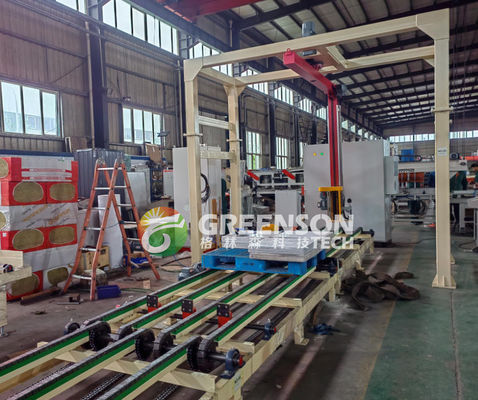

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, preparing them for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

Automatic Cutting Machine

Features two cutting systems: vertical/longitudinal cutting and horizontal cutting, equipped with dust collector system. Cuts 1.2*2.4m boards into 603*603mm/595*595mm small boards.

Cutting speed: 15m/min
Cutting knife: Vertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power: 17.15KW

Technical Specifications

Parameter	Specification
Sheet thickness	5-30mm
Speed adjustment	Frequency conversion synchronous speed regulating
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material, etc.
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.
Stacking mode	10 layers (4 packages/layer)
Cutting mode	Lengthways: 3 blades, Horizontal: 5 blades
Overall dimension	Length: 56000mm, Width: 9200mm
Lamination mode	Double side: laminate front side and back at one time Single side: laminate one side at one time
