Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Product Name:

Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

Keyword:

Gypsum Ceiling Tiles Making Machine

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-6 Million Sq.m/year

After-sales Service:

Engineers Available To Service

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Product Description

Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Product Description

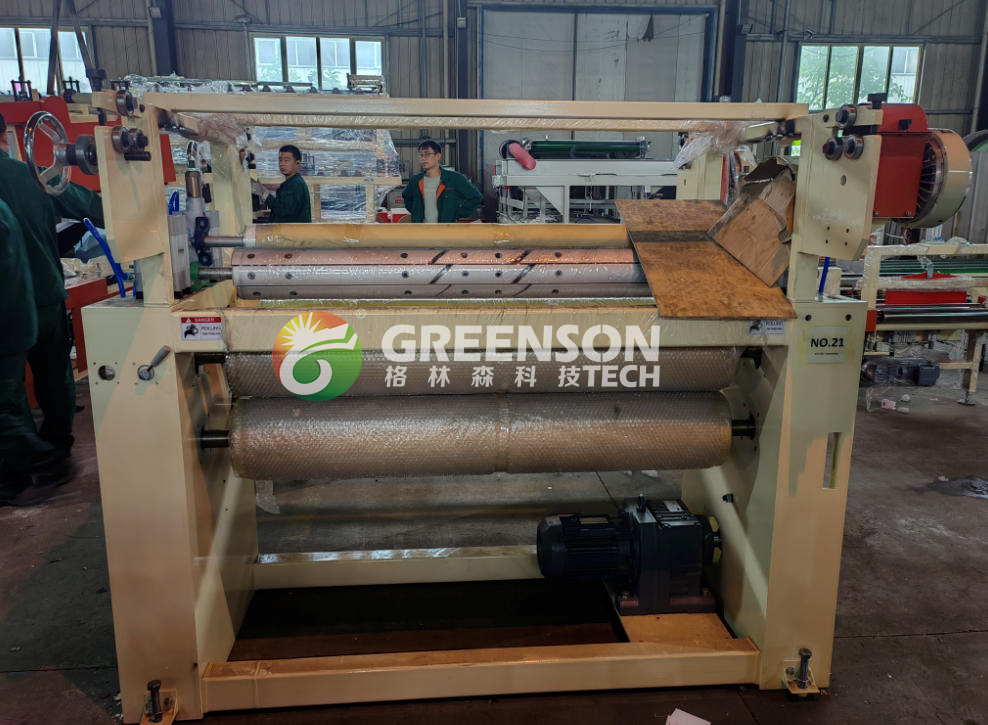

Gypsum board lamination machine is designed to laminate fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products can be used as ceiling tile and partition wall panel.

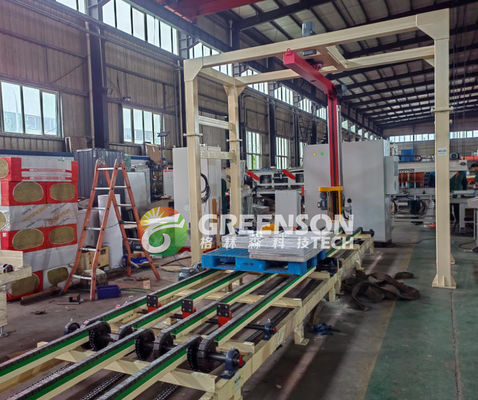

Automatic Gypsum Board Feeding Machine

The cylinder pushes the gypsum board that above on the stack lift platform to the conveyor roll, ready to laminate PVC and aluminum film.

Max. Load-bearing

3000kg

Stroke

1500mm

Min. Height

620mm

Max. Height

2000mm

Platform size

1200*2400mm

Automatic Cutting Machine

Consists of two sets cutting system: vertical/longitudinal cutting and horizontal cutting, equipped with dust collector system. Cuts the 1.2*2.4m big board to the 603*603mm/595*595mm small board.

Cutting speed

15m/min

Cutting knife

Vertical/longitudinal: 3 blades; Horizontal: 5 blades

Overall power

17.15KW

Technical Specifications

Sheet thickness

5-30mm

Speed adjustment

Frequency conversion synchronous speed regulating

Annual capacity

2-4 million Sq.m

Film material

PVC film, aluminum foils, decorative material, etc.

Board sheet material

PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Stacking mode

10 layers (4 packages/layer)

Cutting mode

Lengthways: 3 blades, Horizontal: 5 blades

Overall dimension

Length: 56000mm, Width: 9200mm

Lamination mode

Double side: laminate front side and back at one timeSingle side: laminate one side at one time
