Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Product Name:

Full Automatic Advanced Double Side Laminating Machine Gypsum Board Ceiling Tiles Making Machine

Keyword:

Gypsum Ceiling Tiles Making Machine

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-6 Million Sq.m/year

After-sales Service:

Engineers Available To Service

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

1300mm Effective Laminating Gypsum Ceiling Tile Production Line

2-6 million Sq.m/year Production Capacity Gypsum Board Laminating Machine

Adjustable Speed 2-15m/min PVC Laminated Gypsum Board Machine

Product Description

Full Automatic Advanced Double Side Laminating Machine for Gypsum Board Ceiling Tiles

Product Overview

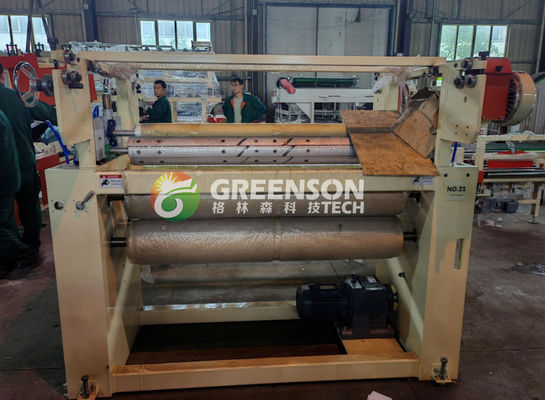

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating width	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Main Components

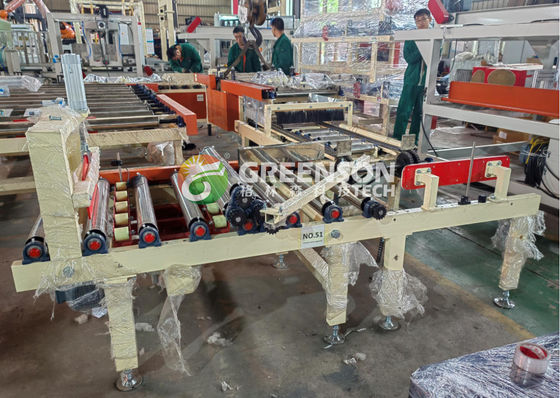

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg

Stroke: 1500mm

Height range: 620mm - 2000mm

Platform size: 1200×2400mm

Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min

Cutting knives: Vertical: 3 blades, Horizontal: 5 blades

Overall power: 17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

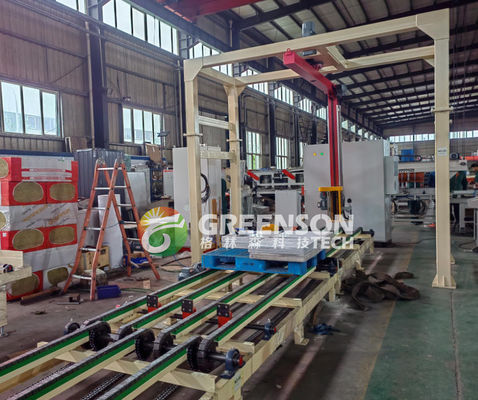

Stacking mode: 10 layers (4 packages/layer)
Lamination options: Double side (front and back simultaneously) or single side
Overall dimensions: 56000mm (L) × 9200mm (W)
