Sheet Perforation Machine
Created with Pixso.

Easy To Operate Tile Hydraulic Press Machine Mdf Board Sheet Board Punching Machine

Name

Easy To Operate Tile Hydraulic Press Machine Mdf Board Sheet Board Punching Machine

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Supply Ability: 50 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE
Product Name:
Easy To Operate Tile Hydraulic Press Machine Mdf Board Sheet Board Punching Machine
Keyword:
Sheet Punching Machine
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Patterns:
Round , Square, Oval, Hexagonal, Irregular
Width Of Perforation:
1220mm
Speed:
50 Times/minute
Stroke:
30mm
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

hydraulic press tile machine

,

MDF board punching machine

,

sheet perforation press machine

Product Description

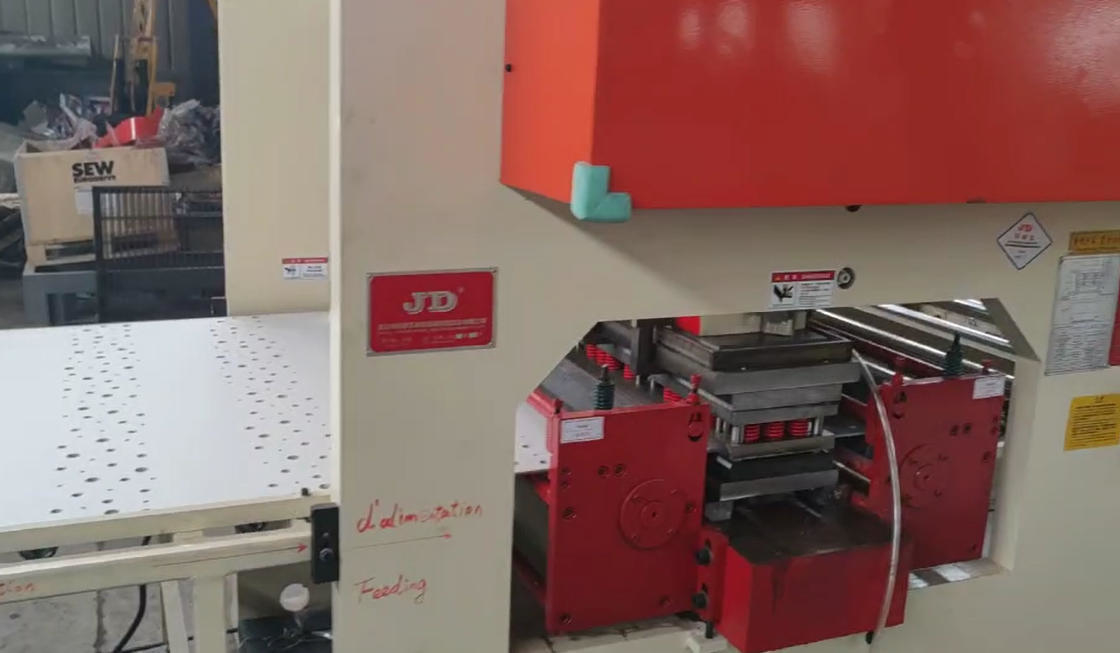

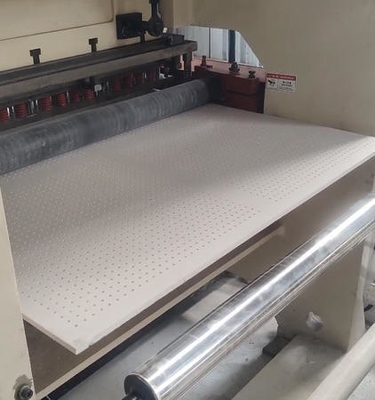

Easy To Operate Tile Hydraulic Press Machine MDF Board Sheet Board Punching Machine
This high-performance hydraulic press machine is designed for precision perforation of various board materials with customizable patterns and efficient operation.
Key Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns Round, Square, Oval, Hexagonal, Irregular
Width of perforation 1220mm
Speed 50 times/minute
Stroke 30mm
Color Customized
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (loads max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Structure & Configuration
  • Body of main machine welded with Q235 steel plate
  • H type gantry structure
  • Servo motor controlled feeding device

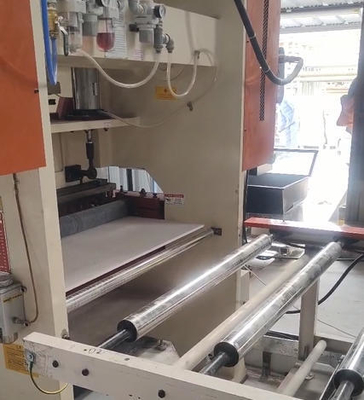

  • Front and rear roller conveyor (3000mm each)
  • Unilateral positioning for easy operation and high frequency
  • Central cabinet control with LCD touch screen
  • 5.7-inch color LCD touch screen for digital input
Applications
This perforation machine is designed for creating precision holes in various materials including:
  • Gypsum ceiling board
  • MgO board
  • MDF/HDF
  • Fiber cement board
  • Metal sheet
Custom Perforation Patterns
Our extensive punching pattern database supports customized designs including:
  • Round hole
  • Square hole
  • Oval hole
  • Round/oval cross
  • Hexagonal hole
  • Irregular hole patterns

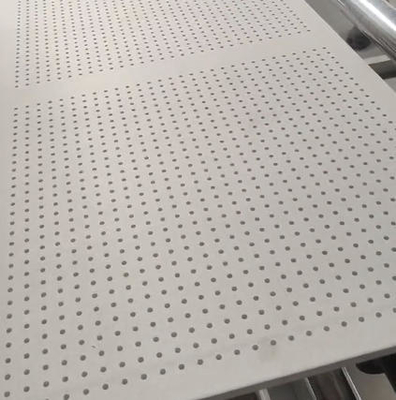

Finished Product Example
Easy To Operate Tile Hydraulic Press Machine Mdf Board Sheet Board Punching Machine 0
