Plaster Ceiling Tile Punching Machine For Small Business Sound Absorbing Panel Production Equipment

Plaster Ceiling Tile Punching Machine For Small Business Sound Absorbing Panel Production Equipment

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE SGS

Product Name:

Plaster Ceiling Tile Punching Machine For Small Business Sound Absorbing Panel Production Equipment

Keyword:

Sheet Punching Machine

Pressure:

80T, 160T, 200T

Usage:

Gypsum Board, MDF, HPL, Fiber Cement Board Perforation

Patterns:

Round, Square, Oval, Hexagonal, Irregular

Width Of Perforation:

1220mm

Speed:

50 Times/minute

Overall Size:

2300*1500*2300(H*L*W)

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

plaster ceiling tile punching machine

sound absorbing panel production equipment

small business sheet perforation machine

Product Description

Plaster Ceiling Tile Punching Machine for Small Business Sound Absorbing Panel Production

Precision perforation equipment designed for creating sound-absorbing panels in various materials including gypsum board, MDF, HPL, and fiber cement board.

Product Specifications

Attribute	Value
Pressure	80T, 160T, 200T
Usage	Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns	Round, Square, Oval, Hexagonal, Irregular
Width of perforation	1220mm
Speed	50 times/minute
Overall Size	230015002300(HLW)
Weight	7-11T

Technical Specifications

Punching pressure: 200 ton
Stroke: 30 mm
Max mold height closed: 260mm
Number of strokes: 50 times/minute
Slide surface: 210*1100mm
Working table: 300*1670mm
Spacing of both pole: 1350mm (load the max board width 1220mm)
Power of main motor: 22kw
Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
Feeding accuracy: ±1mm
Maximum feeding rate: 100mm
Maximum feeding thickness: 20mm
Gross weight of machine: 11000kg
Overall dimension: 2300*1500*2300(H*L*W)

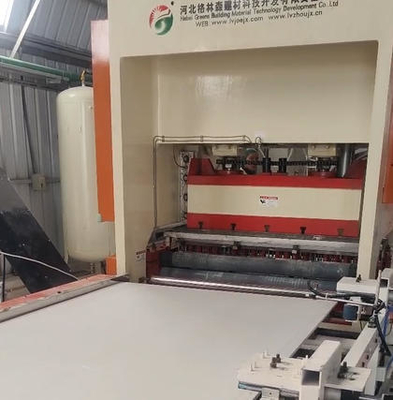

Structure and Configuration

Body of the main machine is welded with Q235 steel plate
H type gantry structure
Servo motor controlled feeding device
Front and rear roller conveyor (3000mm each)
Unilateral positioning for easy operation and high frequency
Central cabinet control with LCD touch screen digital input
5.7-inch color LCD touch screen

Applications

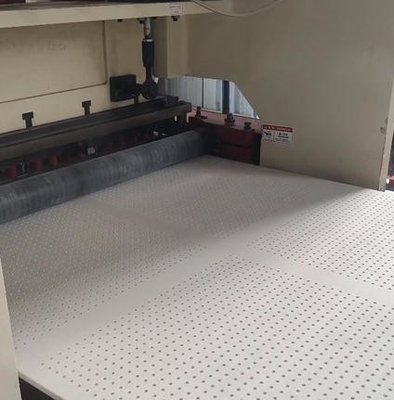

This perforation machine is designed for creating precision holes in various materials including gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, and metal sheets.

Perforation Patterns

Our extensive punching pattern database supports customized designs including:
