products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Sheet Perforation Machine
Created with Pixso.

Silenced Plaster Ceiling Tile Gypsum Board Hydraulic Press Hole Piercing Machine Punching Machine

Name

Silenced Plaster Ceiling Tile Gypsum Board Hydraulic Press Hole Piercing Machine Punching Machine

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Payment Terms: L/C,T/T
Supply Ability: 50 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE
Product Name:
Silenced Plaster Ceiling Tile Gypsum Board Hydraulic Press Hole Piercing Machine Punching Machine
Keyword:
MgO Board Sheet Metal Punching Machine
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Patterns:
Round, Square, Oval, Hexagonal, Irregular
Speed:
50 Times/minute
Core Components:
PLC
Production Capacity:
1.2-3m/min
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

silenced plaster ceiling tile machine

,

gypsum board hydraulic press machine

,

sheet perforation punching machine

Product Description
Silenced Plaster Ceiling Tile Gypsum Board Hydraulic Press Hole Piercing Machine Punching Machine
Product Specifications
Attribute Value
Product Name Punch Hole Plate Machine Plaster False Ceiling Punching Machine For Small Business
Keyword Gypsum Ceiling China Perforated Automatic Perforated Plasterboard MgO Board Sheet Metal Punching Machine
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns Round, Square, Oval, Hexagonal, Irregular
Width of perforation 1220mm
Speed 50 times/minute
Overall Size 2300*1500*2300(H*L*W)
Technical Parameters
  • Punching pressure: 160 KG
  • Punching stroke: 30mm
  • Max gypsum board punching thickness: 20mm
  • Total weight: 7,000 KG
  • Punching speed: 1 board/m in 50 times/min (1220mm*2400mm)
Excellent perforation quality: Smooth, clean holes with no burrs and perfect vertical alignment.
Custom hole shapes available according to your requirements. Our technicians will provide comprehensive operation training.
Applications

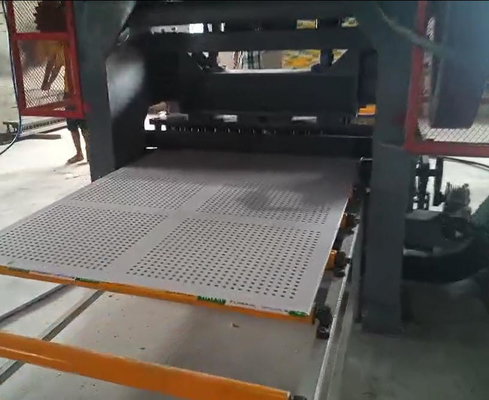

This perforation machine is designed for creating holes in gypsum ceiling boards, MgO boards, MDF, HDF, fiber cement boards, and metal sheets.

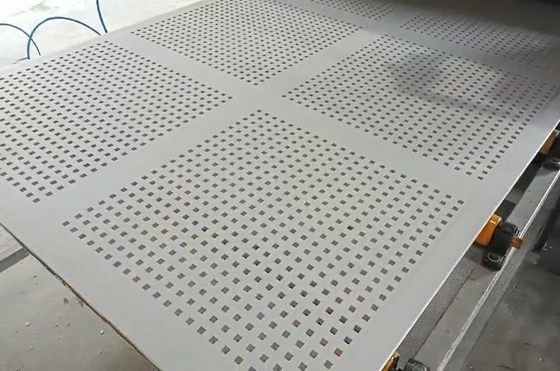

Perforation Pattern Options

Our company maintains an extensive punching pattern database to provide technical support for customers. Available patterns include:

  • Round hole
  • Square hole
  • Oval hole
  • Round/oval cross
  • Hexagonal hole
  • Irregular hole
Silenced Plaster Ceiling Tile Gypsum Board Hydraulic Press Hole Piercing Machine Punching Machine 0
