Building Insulation Systems Rock Wool Sheet Making Machinery Production Line

Building Insulation Systems Rock Wool Sheet Making Machinery Production Line

Brand Name:	Greenson
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Building Insulation Systems Rock Wool Sheet Making Machinery Production Line

Keyword:

Rock Wool Board Production Line Mineral Wool Production Plant

Production Capacity:

10000-50000tons/year

Thickness:

50-200mm

Density:

100-200kg/m3

Main Process:

Mixing, Forming, Water Cutting, Drying

Fire Resistance:

Class A1

Length:

1200-2400mm

Width:

600-1200mm

After-Sales Service:

Engineers Available To Service Machinery Overseas

Highlight:

rock wool sheet production line

mineral wool board machinery

building insulation systems equipment

Product Description

Building Insulation Systems Rock Wool Sheet Making Machinery Production Line

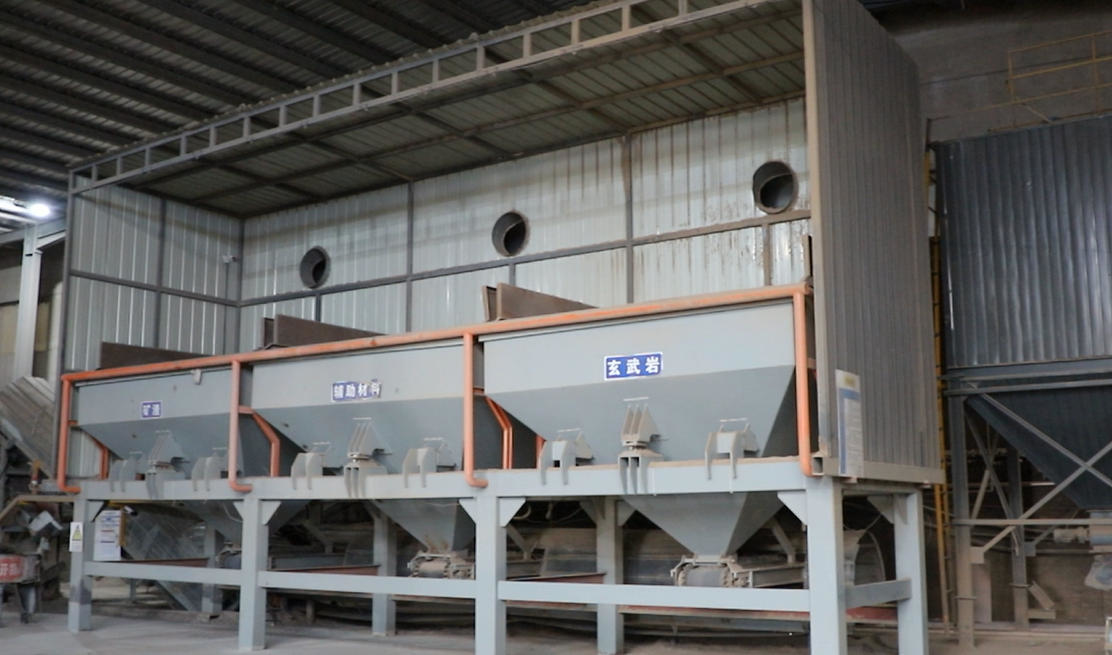

The raw materials used in rock wool production include basalt, dolomite, binders, etc. The raw materials are loaded into the hopper by the elevator, and the melting furnace is heated and melted into the melt flow tank. The lava flow is cooled and spun into fibers by the centrifuge, and then sprayed into the fiber molding room. The binder is added during the spraying process, and the fibers are heated by the negative pressure wind. Pull down to the mesh belt to form the original felt. The mesh belt transports the original felt to the pendulum cloth machine to swing the cloth. The original felt after the swing cloth is transported to the curing furnace by the cloth machine, and runs forward between the upper and lower chain belts. The hot air blower blows the hot air into the curing furnace. The cotton felt in the furnace is solidified, and the solidified products are cut, first longitudinally cutting, and then transversely cutting, and the finished product is packaged and put into storage.

Product Parameters

Specification	Details
Application	Manufacture Rock Wool Blanket, Rock Wool Board
Capacity	10000tons/year, 20000tons/year, 30000tons/year, 40000tons/year, 50000tons/year, 60000tons/year, 70000tons/year, 80000tons/year
Raw materials	Basalt, dolomite, binders and so on
Main energy supply system	Raw coal energy supply system Power energy supply system Natural gas energy supply system

Frequently Asked Questions

Q: Where is the factory located?

A: We are located in Shijiazhuang, Hebei Province.

Q: What is your delivery time?

A: Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 30-60 days after receiving the deposit. If we don't have the products in stock, we will arrange the production immediately, with delivery time of 1-3 months depending on order quantity.

Q: How can we ensure quality?

A: The final inspection is always carried out before shipment.

Q: How to install the equipment after purchasing?

A: Professional designing, manufacturing, installation and commissioning team. On-site installation and commission until the production of qualified products.

Q: Do you offer a guarantee?

A: Yes, we guarantee our product for one year. Provide after-sales service support with technical support.
