Fully Automatic Lamination Machine
Created with Pixso.

Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine

Name

Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine

Brand Name: Greens
Model Number: LV-1300SFM
MOQ: 1 set
Price: US $20000-200000
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 10 plants per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Product Name:
Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine
Keyword:
Pvc Laminated Gypsum Ceiling Tiles Machine
Raw Material:
Gypsum Board, PVC Film, Aluminum Foil, Glue, Tape
Capacity:
2-6 Million Sqm/year (8hrs/day, 300days/year)
Thickness:
3-50mm
Warranty:
1 Year
Effective Laminating Width:
Max 1300mm
Laminating Speed:
3-15m/min
Packaging Details:
PE film wrapped
Supply Ability:
10 plants per year
Highlight:

full automatic gypsum ceiling machine

,

gypsum ceiling tiles making machine

,

fully automatic lamination machine with warranty

Product Description
Full Automatic Gypsum Ceiling Board Making Machine
Product Specifications
Attribute Value
Product Name Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine
Keyword PVC laminated gypsum ceiling tiles machine
Raw Material Gypsum board, PVC film, aluminum foil, glue, tape
Capacity 2-6 million sqm/year (8hrs/day, 300days/year)
Thickness 3-50mm
Warranty 1 year
Effective Laminating Width Max 1300mm
Laminating Speed 3-15m/min
Product Overview

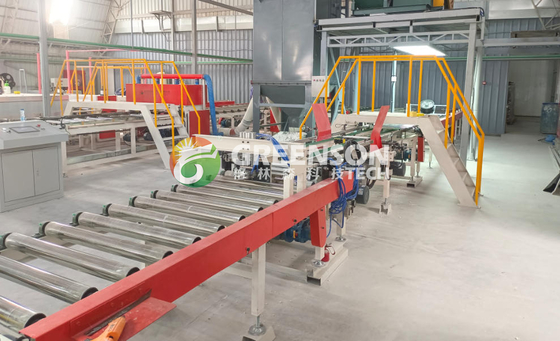

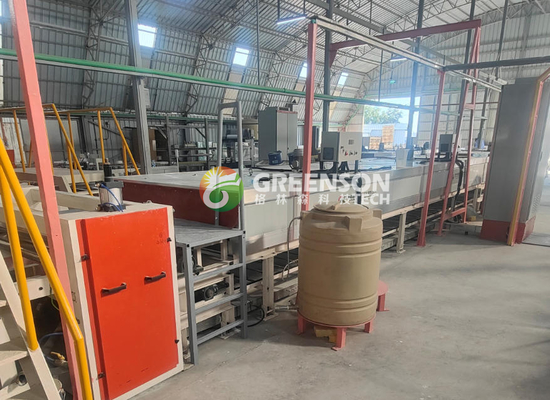

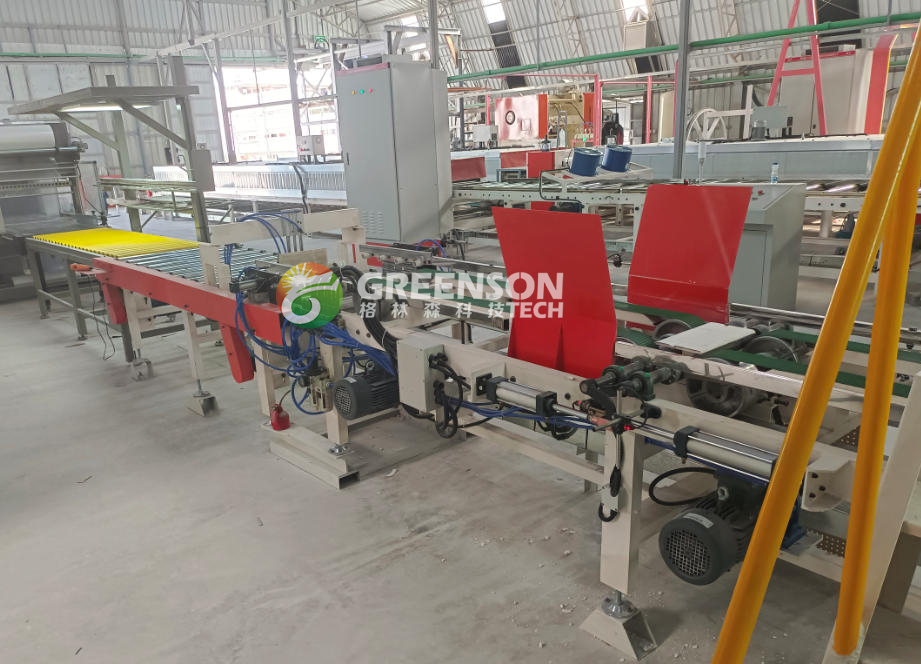

This full automatic gypsum ceiling board making machine is designed for producing PVC laminated gypsum ceiling tiles. The complete production line includes lamination machine, cutting machine (from 4 by 8 to 2 by 2), edge sealing machine, and packing machine.
Product Dimensions
  • Length × Width: 595×595mm, 600×600mm, 603×603mm, 1200×600mm
  • Thickness: 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
Lamination Machine Technical Parameters
Model LV-1300SFM01 LV-1300SFM02 LV-1300SFM03
Max. Laminating Width 1300mm
Thickness of Sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating

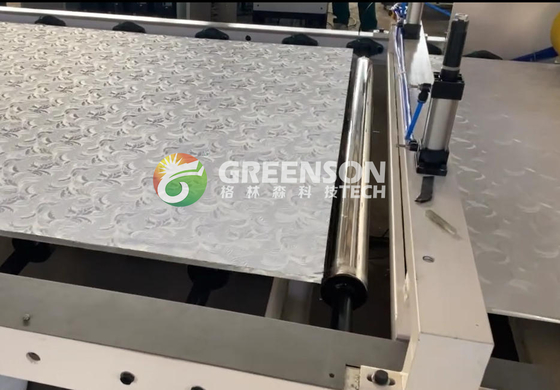

Finished Product Examples
Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine 0 Full Automatic Gypsum Ceiling Board Making Machine Gypsum Ceiling Tiles Machine 1
