products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fully Automatic Lamination Machine
Created with Pixso.

Fully Automatic Gypsum Tile Lamination Machine 2-6M Sqm/Year

Name

Fully Automatic Gypsum Tile Lamination Machine 2-6M Sqm/Year

Model Number: Lvjoe-FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: T/T,L/C
Supply Ability: 10 line per year
Detail Information
Product Description
Detail Information
Place of Origin:
Shijiazhuang, Hebei province
Certification:
ISO CE
Product Name:
Fully Automatic Lamination Machine 2-6 Million Sqm/year Gypsum Tile Making Machine
Keyword:
New Business Ideas For Small Business 60 60 Tile Gypsum False Ceiling Machine
Raw Material:
Gypsum Board, PVC Film, Aluminum Foil, Glue
Condition:
New
Capacity:
2-6 Million Sqm
Original:
Hebei Province
Packaging Details:
PE film packing
Supply Ability:
10 line per year
Highlight:

fully automatic gypsum tile machine

,

gypsum lamination machine 2-6M sqm

,

automatic tile lamination equipment

Product Description
Fully Automatic Lamination Machine 2-6 Million Sqm/year Gypsum Tile Making Machine
Product Specifications
Attribute Value
Product Name Fully Automatic Lamination Machine 2-6 Million Sqm/year Gypsum Tile Making Machine
Raw Material Gypsum board, PVC film, aluminum foil, glue
Condition New
Capacity 2-6 million sqm
Origin Hebei province

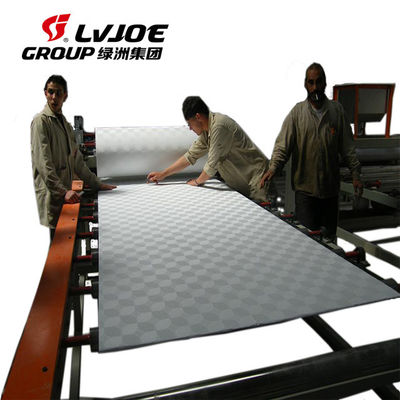

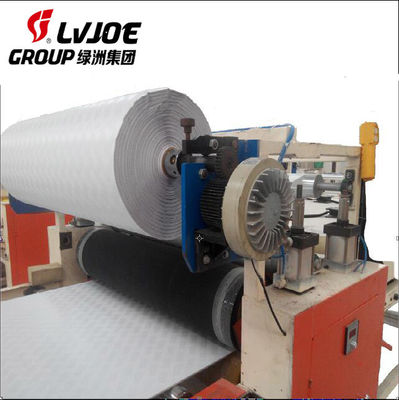

Machine Overview

This advanced lamination machine incorporates the latest coating and laminating technology to bond functional or decorative films with board materials. The entire system operates with synchronized precision for optimal performance.

Technical Parameters
Effective laminating width 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-6 million Sqm
Film material PVC film, aluminum foils, decorative material
Board sheet material PVC baseboard, gypsum board sectional board, PVC foam board
Custom configurations available to meet specific customer requirements.
Production Workflow
  • Automatic feeding
  • Dust cleaning
  • PVC film and aluminum foil laminating
  • Film cutting (manual/automatic)

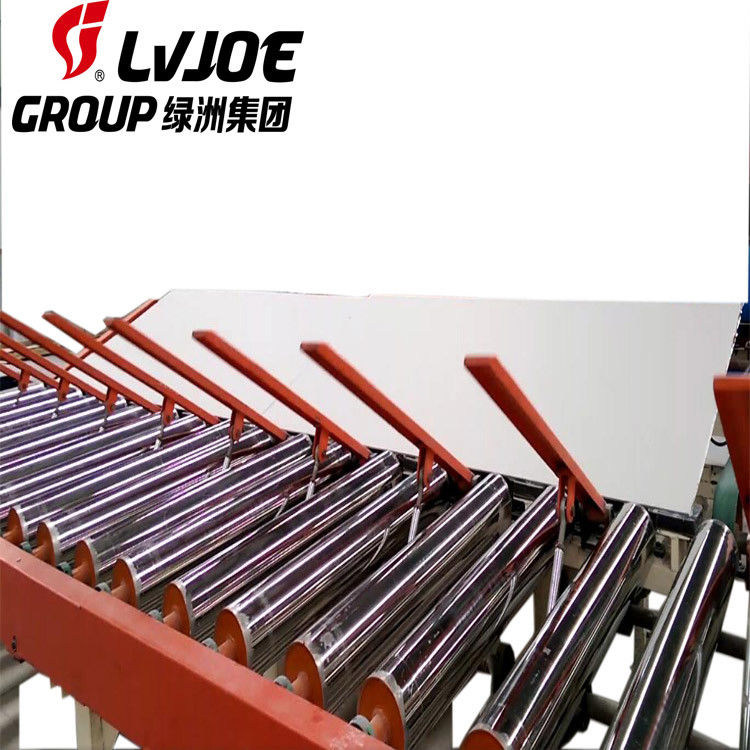

  • Conveying
  • Vertical cutting (with dust collection)
  • Horizontal cutting (with dust collection)
  • Small board stacking
  • Edge sealing

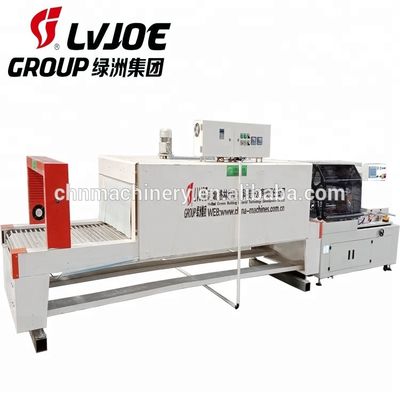

  • Stretch packing
  • Finished products stacking
Fully Automatic Gypsum Tile Lamination Machine 2-6M Sqm/Year 0
