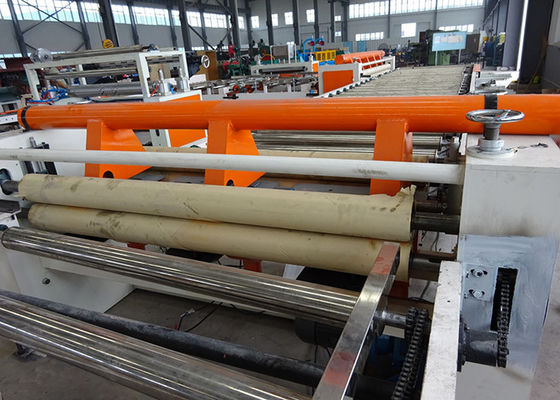

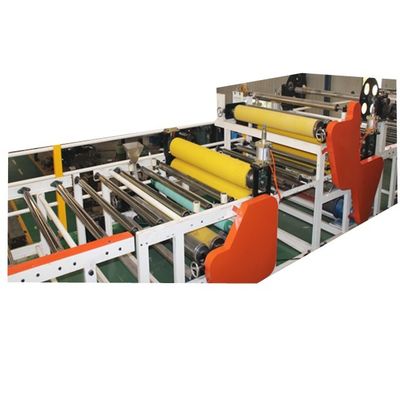

Less Than 1300mm Pvc Film Gypsum Board Lamination Machine Production Line

Name: Less Than 1300mm Pvc Film Gypsum Board Lamination Machine Production Line
Brand: Hebei Greens Building Material Technology Development Co.,Ltd
SKU: Gypsum Board Lamination Machine
Price: 349.16 USD
Availability: InStock

Brand Name:	Gypsum Ceiling Tiles Machine
Model Number:	Gypsum Board Lamination Machine
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	FOB
Supply Ability:	10 Sets/year

Detail Information

Product Description

Detail Information

Certification:

Product Name:

Less Than 1300mm Pvc Film Gypsum Board Lamination Machine Production Line

Keyword:

60 60 Tile Gypsum False Ceiling Machine Pvc Laminated Gypsum Board Cutting Machine

Board Releasing Mode:

Stacking Concentrated Transportation

Vottage:

380V, 50HZ Customized

Speed Of The Production Line:

15m/min

Board Thickness:

5-30 Mm

Size:

595*595， 603*603， 1200*600mm

Effective Lamination With:

Less Than 1300mm

Board Feeding Mode:

Automatic(push Type、suction Type) Optional

Raw Material:

Pvc Film ,gypsum Board ,pet Film

Packaging Details:

Wooden Frame Or PVC Film

Supply Ability:

10 Sets/year

Highlight:

Gypsum Board Lamination Machine

Pvc Film Gypsum Board Lamination Machine

Gypsum Board Production Line

Product Description

PVC Film Gypsum Board Lamination Machine Production Line (Under 1300mm)

Key Features

High-speed production at 15m/min
Handles board thickness from 5-30mm
Effective lamination width under 1300mm
Automatic board feeding (push/suction options)
Stacking concentrated transportation system
Works with PVC film, gypsum board, and PET film
Customizable 380V, 50HZ power configuration

Technical Specifications

Parameter	Details
Production Speed	15m/min
Board Thickness Range	5-30 mm
Standard Board Sizes	595×595, 603×603, 1200×600mm
Effective Lamination Width	Less than 1300mm
Power Requirements	380V, 50HZ (Customizable)
Board Feeding Mode	Automatic (Push Type/Suction Type Optional)
Board Release Mode	Stacking Concentrated Transportation
Compatible Materials	PVC Film, Gypsum Board, PET Film
Adhesive Type	Water Glue for PVC Film

Industrial Applications

Construction Industry

Ideal for producing laminated gypsum boards used in modern building construction and interior applications.

Interior Design

Perfect for creating decorative ceiling tiles and wall panels with durable PVC film finishes.

Manufacturing

Streamlines production of high-quality laminated boards for various industrial applications.

Operational Advantages

This fully automated lamination machine revolutionizes production with its high-speed operation and precision engineering. The innovative stacking concentrated transportation system ensures smooth material handling throughout the process.

With customizable power configuration and multiple feeding options, the machine adapts to diverse production requirements while maintaining consistent output quality. The under 1300mm working width makes it particularly suitable for standard ceiling tile dimensions.

Ordering Information

Minimum Order: 1 set
Delivery Time: 60 days
Annual Supply Capacity: 10 sets
Payment Terms: FOB
Packaging: Wooden frame or PVC film
Certification: CE certified
Origin: Made in China

Tags:

Fully Automatic Lamination Machine for PVC Gypsum Ceiling Tiles with 380V Voltage 1300mm Max Laminating Width and 5-30mm Thickness

Get Best Price

Fully Automatic Lamination Machine with 1300mm Effective Laminating 2-6 Million Sq.m/year Production Capacity and 3-15m/min Adjustable Speed

Get Best Price

Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty

Get Best Price

Fully Automatic Lamination Machine for PVC Gypsum Ceiling Tiles with ISO9001 Certification and 4-8 Million Square Meters Annual Production Capacity

Get Best Price

Fully Automatic Lamination Machine

Gypsum Ceiling Tile Production Line

Sheet Perforation Machine

Mineral Wool Board Production Line

Mineral Fiber Ceiling Board Machine

Mgo Board Production Line

Calcium Silicate Board Machine

Gypsum Cornice Making Machine

Fiber Cement Board Production Line

Mgo Board Machine

Fully Automatic Lamination Machine

Gypsum Ceiling Tile Production Line

Sheet Perforation Machine

Mineral Wool Board Production Line

Mineral Fiber Ceiling Board Machine

Mgo Board Production Line

Calcium Silicate Board Machine

Gypsum Cornice Making Machine

Fiber Cement Board Production Line

Mgo Board Machine

products details

Less Than 1300mm Pvc Film Gypsum Board Lamination Machine Production Line

Less Than 1300mm Pvc Film Gypsum Board Lamination Machine Production Line

Gypsum Board Lamination Machine

Pvc Film Gypsum Board Lamination Machine

Gypsum Board Production Line

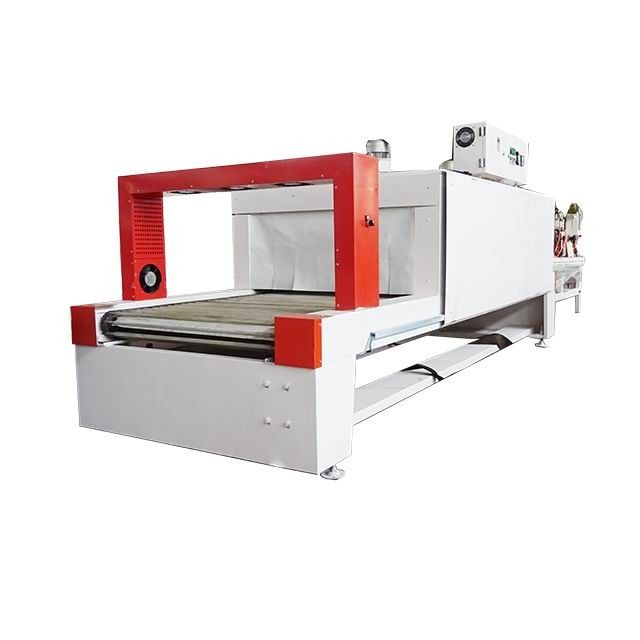

full automatic shrink wrapping machine
