50-200mm Thickness Mineral Rock Wool Production Line with 10000-50000tons/year Capacity and Class A1 Fire Resistance

50-200mm Thickness Mineral Rock Wool Production Line with 10000-50000tons/year Capacity and Class A1 Fire Resistance

Brand Name:	Greenson
MOQ:	1
Price:	US $2000000-4000000
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

HEBEI

Product Name:

Mineral Rock Wool Production Line Rock Mineral Basalt Wool Production Line

Keyword:

Stone Wool Production Line Rock Wool Board Production Line Mineral Wool Production Plant

Production Capacity:

10000-50000tons/year

Thickness:

50-200mm

Density:

100-200kg/m3

Main Process:

Mixing, Forming, Water Cutting, Drying

Fire Resistance:

Class A1

Length:

1200-2400mm

Width:

600-1200mm

After-Sales Service:

Engineers Available To Service Machinery Overseas

Highlight:

Mineral Rock Wool Production Line

Rock Mineral Basalt Wool Production Line

50-200mm Mineral Wool Sandwich Panel Line

Product Description

50-200mm Mineral Rock Wool Production Line

This industrial mineral rock wool production line processes raw materials including basalt, dolomite, and binders to manufacture high-quality rock wool insulation products. The automated system ensures efficient production from material loading to finished product packaging.

Production Process Overview

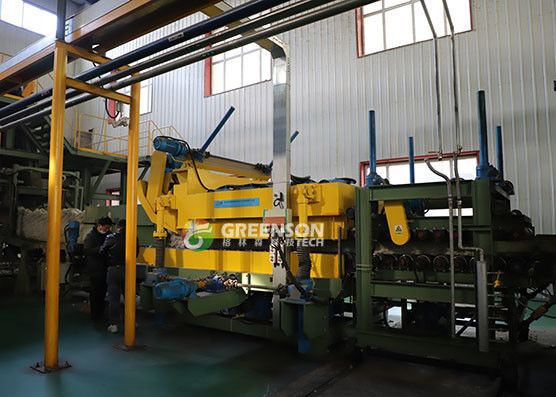

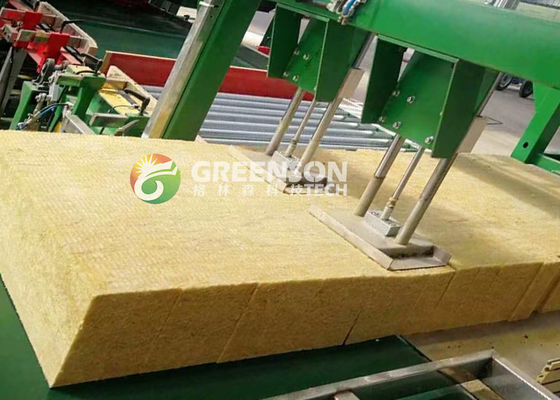

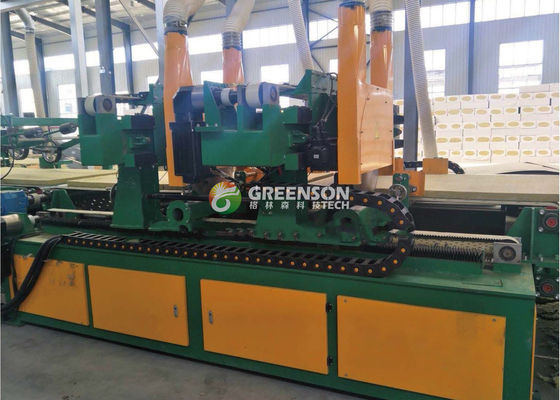

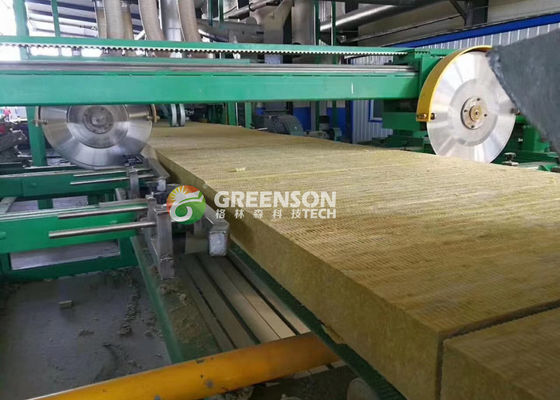

Raw materials are loaded into the hopper via elevator and transported to the melting furnace. After heating and melting into lava flow, the material enters the melt flow tank. The molten material is then cooled and spun into fibers by the centrifuge, with binder added during the spraying process. Fibers are drawn down to the mesh belt by negative pressure wind to form the original felt, which is then transported through pendulum cloth machinery to the curing furnace. Hot air blowers solidify the cotton felt, and the finished products undergo precision cutting (longitudinal then transverse) before final packaging and storage.

Technical Specifications

Application	Manufacture of Rock Wool Blanket and Rock Wool Board
Annual Capacity	10,000 - 80,000 tons/year (multiple configurations available)
Raw Materials	Basalt, dolomite, binders and related compounds
Energy Supply Systems	Raw coal energy supply system Power energy supply system Natural gas energy supply system
