products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Calcium Silicate Board Machine
Created with Pixso.

Automatic Calcium Silicate Insulation Wall Board Making Machines with High Capacity

Automatic Calcium Silicate Insulation Wall Board Making Machines with High Capacity

Automatic Calcium Silicate Insulation Wall Board Making Machines with High Capacity

Brand Name: Lvjoe
Model Number: lvjoe
MOQ: 1 line
Price: US $2000000-4000000
Payment Terms: L/C, T/T
Supply Ability: 5 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Mainland, China
Certification:
CE ISO
Power(W)::
800-1200kw
Production Capacity:
3million-10million M2/YEAR
Voltage:
380V/220V/415V
Dimension(L*W*H):
12600*1950*1600mm
Thickness:
7-15mm
Advantage:
Environment Friendly
Packaging Details:
standard package
Supply Ability:
5 lines per year
Highlight:

silicate board machine

,

wall panel making machine

Product Description

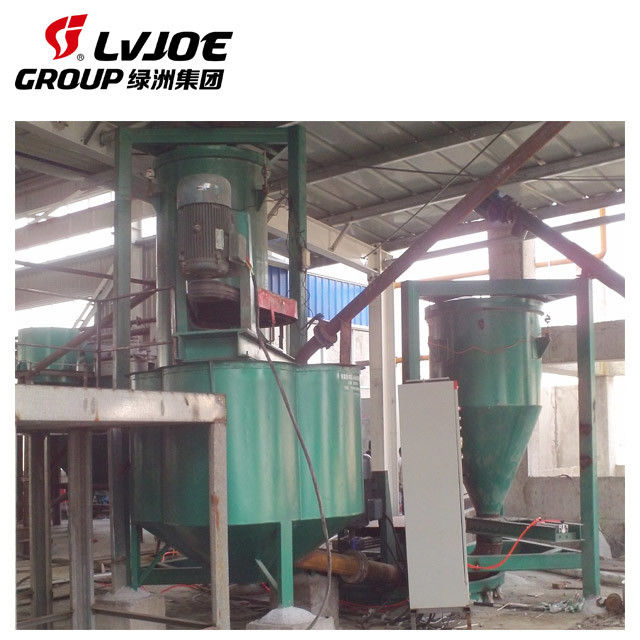

Automatic Calcium Silicate Insulation Wall Board Making Machines



Introduction:

Calcium Silicate Board is a new type decorative material,which is made from high-grade siliceous materials and lime refactory with the mixture of the natural fiber as reinforcing material.



We supply 5 million sqm one year

Main row material one day

cement50T

fiber 2-3T

assistance material10T

water 100T

water about 100T(can be reuse again)







Item



Unit



Standard Fiber Reinforced Calcium Silicate Board

Density

g/cm3

<1.2

Anti-bend strength

MPa

>9

Heat conduction modulus

w/m.k

<0.29

Anti-impact strength

kJ/mm2

>2.0

Pull force of screw

N/mm

>75

Dry shrinkage rate

%

<0.2

Non-burn performance



In accordance with standard GB8624 First ClassNon-burn Material



Electrical

A mechanical and electrical capacity of 400 KW or so explosive filling, shall be equipped

with transformer SC400/10 type a, Some high and low voltage switchgear.



water required

Because the water hardness smaller rivers water source, the production water water had better

 use after precipitation. The JiangHeShui. This condition can be used without the drinking water

(or processed neutral water), are also available. The hardness of smaller groundwater. The water

 hardness is too big, easy to make products brittle increases, and influence. Some parts of the

 filter host water performance



Advantage

1 Configuration dust collector, eliminate dust flying, collecting dust to used for production

2 The "closed-circuit circulation", including alkali water not out flow

3All waste recycling, to used for production



Automatic Calcium Silicate Insulation Wall Board Making Machines with High Capacity 0
