Small Business Idea Easy To Operate Gypsum Board Perforation Machine

Name: Small Business Idea Easy To Operate Gypsum Board Perforation Machine
Brand: Hebei Greens Building Material Technology Development Co.,Ltd
SKU: LV-CK01
Price: 50,000.00 USD
Availability: InStock

Brand Name:	LVJOE
Model Number:	LV-CK01
MOQ:	1 set
Price:	US $20000-80000
Payment Terms:	L/C, T/T
Supply Ability:	50 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

SHIJIAZHUANG

Certification:

ISO CE

Design:

Round Hole, Square Hole, Irregular Hole

Usage:

Hole Punching To Gypsum Board,MDF, Calcium Silicate Board, Metal Board

Application:

Construction

Color:

As Your Required

Type:

Pneumatic Clutch

Capacity:

1 Pc/minute

Packaging Details:

PE film wrapped

Supply Ability:

50 sets per year

Highlight:

gypsum board making machine

gypsum board feeding machine

Product Description

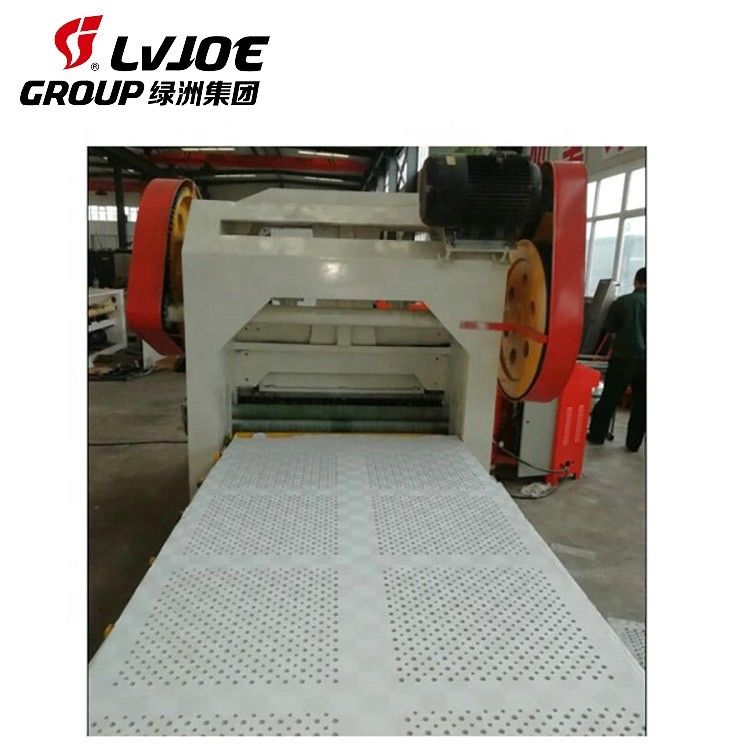

Small Business Idea Easy To Operate Gypsum Board Perforation Machine

1.Technical data:

1. Punching pressure: 200 ton

2. Stroke: 30 mm

3. Max mold height closed: 260mm.

4. Number of strokes: 50 times/minute

5. Slide surface: 210*1100mm

6. Working table: 300*1670mm

7. Spacing of both pole: 1350mm (load the max board width 1220mm)

8. Power of main motor: 22kw Power of servo motor:2.6kw(brand: Zhejiang yifeng)

9. Feeding accuracy: ±1mm

10. Maximum feeding rate: 100mm

11. Maximum feeding thickness: 20mm

12. Gross weight of machine: 11000kg

13. Overall dimension: 2300*1500*2300(H*L*W)

14. Structure and configuration:

Body of the main machine is welded with Q235 steel plate. H type gantry structure

15. configuration of feeding system

Servo motor controlled feeding device

a. With front and rear roller conveyor (3000mm each)

b. Adopt unilateral positioning , easy operation, high frequency

16. Configuration for electric control system

Central cabinet control, LCD touch screen digital input, control the feeding, punching, operation

5.7-inch color LCD touch screen

2.Application

Perforating machine for gypsum board, Model-LV-CK01

Suitable for Gypsum Board, MgO board, Fiber Cement Board, MDF, metal sheet

3.Our Services

1. Best Price; we have our own factory, who has been specialized in full automatic pvc laminated gypsum ceiling tiles

machine for more than 15 years, and you are welcome to our factory any time.
2. Superior Quality; quality is the life of all our business.
3. Best Service; we are the special International Trading Company of our factory, and especially focus on exporting

business.
4. Best after-sale service; our engineers will design scale of whole production line and help you with installation and

commissioning,

and train your workers or employees until they know how to operate all equipment.

4.Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
