Place of Origin: | Hebei China |
Brand Name: | LVJOE |
Certification: | ISO CE |
Model Number: | LV-NT03 |
Minimum Order Quantity: | 1 line |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package for export or as per requirement |
Delivery Time: | 2 months |
Payment Terms: | L/C, T/T |
Supply Ability: | 5 lines per year |
Features: | Light Weight, High Density, High Strength, Fiber Strength | Fuel: | Coal, Gas, Heavy Oil, Light Oil, Diesel |
---|---|---|---|
Characters: | Fireproof, Heat Insulation, Waterproof, Mould Proof, Etc | Usage: | Ceiling Tile, Sound Proof, Heat Insulation |
Capacity: | 6 Million Sqm/year To 50 Million Sqm/year | Place Of Origin: | Hebei Province |
Highlight: | mineral fiber ceiling board production line,building materials machinery |
High Strength Mineral Fiber Ceiling Board Production Line ISO CE Certification

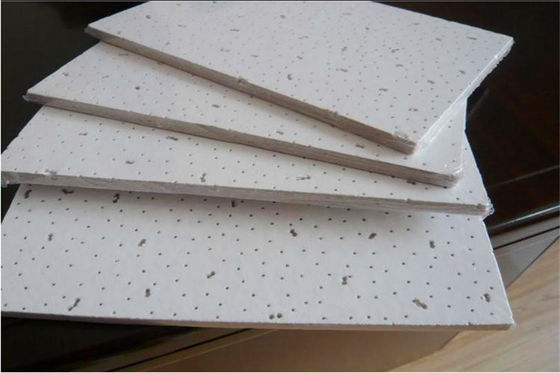

1. The mineral wool board is a new kind of environmental building material which is made of mineral wool
as the main raw material. It has many functions such as decoration, sound absorption, heat insulation,
fire protection and lightness.
2. Main material:
Raw materials: mineral wool, sepiolite, starch
Raw materials: paraffin, stearic acid, borax, boric acid, bone glue, zinc acetate, bone meal, lithopone, lithosamine,
trimer, defoamer, glass fiber, emulsion, thickener, wipe oil, hydraulic oil, Moisture-proof agent
3. Major equipment:
a. Wool beating tank: Put the well-matched ore raw materials (paraffin, acetic acid, sepiolite, starch, etc.) into the
mixing tank, place the water, put the beaten mineral wool, and stir.
b. Stirring tank

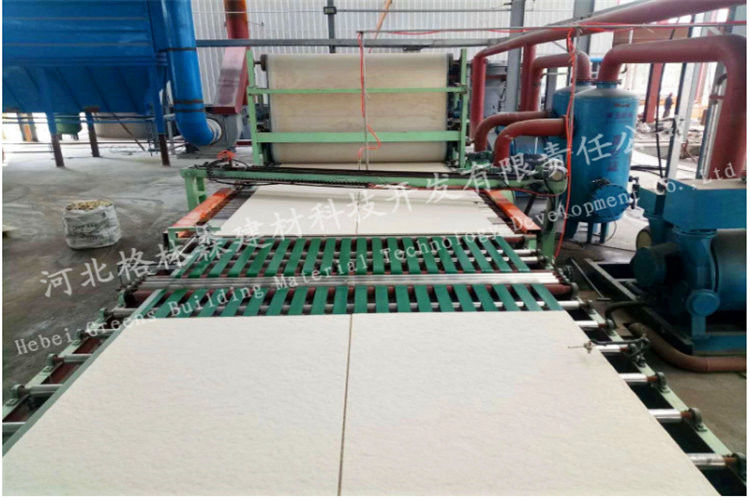

c. Forming line: Slurry pump is used to pump the mineral wool slurry to the forming water line to make the mixture
empty, flattened, cut, and formed on the forming water line.
d. Cutting machine
e. Drying line: The wet board conveyer will put the formed mineral wool board into the hydraulic machine to dry
f. Spray coating: The well-cut mineral wool board is sprayed with a sprayer and then dried in a drying line. The dried
mineral wool board gin is sprayed again and put into the drying line again.
g. Crimping: Embossing roller, driven roller, rack
h. Trimming: Trimming the dried mineral wool board with a cutting machine.
i. Packaging and storage: Acceptance, packaging, and storage of the certified mineral wool board.
4.Technical Parameter for mineral fiber board:
Thickness | 8mm, 9mm, 10mm, 12mm, 15mm, 18mm, 19mm |
Size | 300X300, 595X595mm, 600X600mm, 603X603mm, 605X605mm, 595X1195mm, 600X1200mm, |
Material | Wet-Formed Composite Mineral Fiber |
Density | 250-420KGS/M3 |
Surface | High Quality Vinyl Latex Paint |
Color | White (other colors also available) |
Design | Little Star, Pinhole, Punching, Worm, Real Sand, False Sand, Fine Fissured, etc. |
Application | Concert Hall, Council Chamber, Office, Theater, Dining Hall, Shopping Mall, Airport, Fitness, Library, Studio, etc. |
Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
