Fireproof Wall Panel Single Shaft Mixer For MGO Board Making Machine

Fireproof Wall Panel Single Shaft Mixer For MGO Board Making Machine

Brand Name: LVJOE
Model Number: LV-BM01
MOQ: 1 Set
Price: US $40000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year mgo board making machine
Detail Information
Place of Origin:
Hebei, China (Mainland)
Certification:
CE ISO9001
Power(W):
As Per Actual Requirement
Condition:
New
Production Line Control:
PLC Control System
Voltage:
380v Or Customized
Warranty:
1 Year
Main Process:
Batching, Forming, Cutting
Packaging Details:
Standard exportation package or customized mgo board making machine
Supply Ability:
50 Set/Sets per Year mgo board making machine
Highlight:

mineral wool board production line

,

wall panel production line

Product Description

Product Description

Fireproof Wall Panel Single Shaft Mixer For MGO Board Making Machine



1. Production Line
mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling,

wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board,

flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.



2. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board

will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure.

This is a green environmental-protection project, because that there is no waste water, waste materials and waste

gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering,

and under the normal temperature, they will dry well indoor.



3. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale.

Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust

the thickness of board at will. The standard specification of the board is 1.22mX2.44m.



4.MgO Fireproof Board Contrast With Traditional Fireproof Board :

  MGO BOARD Traditional Fireproof Board
Density(kg/m3) 1.0*103 (approx)1.*1.03
Mositure Absorption Rate(%) 11 About 2 times higher
Anti-bending strength (kgf/cm3) 224 Worse mgo board
Combustion-Resistance Class1 Above 3mm 6mm-12mm
Flexibility Good Worse than mgo board
Sound-Resistance 44-45dB (approx)45dB
Content of harmful substances 100% don't have Have harmful substances



5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation

and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel

for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service

for a long time, the equipment warranty period is one year.



6.Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.



James Yang
ADD: 17th, NanYan Road Economical and Technological
Development Zone,Shijiazhuang City,Hebei,China
Mobile Phone:+8615832254694
WeChat:15832254694
E-mail:lvjoe3@greensontech.com

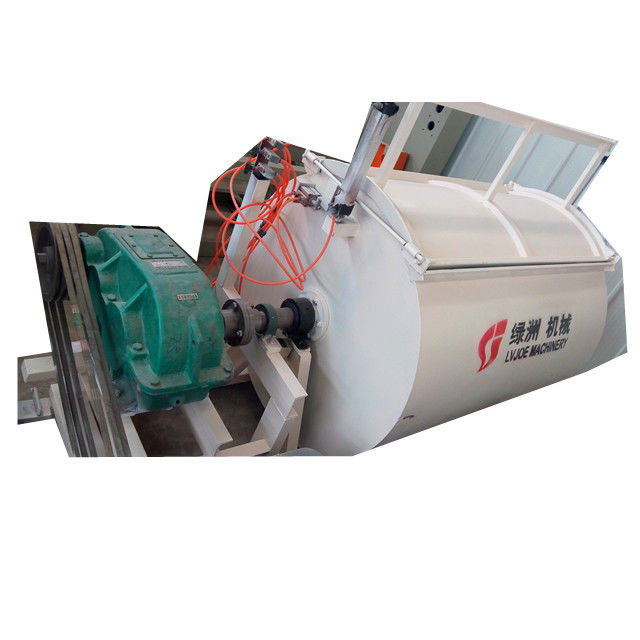

Mixer

The mixer machine is used to make the mgo board and other kinds of exterior wall thermal insulation board.
The machine adopts the fully enclosed design, the mixing time is shorten half time than the exposure mixer, the mixer speed is faster and the mixing materials more uniform. Automatically feeding the material greatly reduce the labour intensity.

Usage and Features

This mixer machine is usded for making the mao board and other kinds of exterior wall thermal insulation board.

Motor power
11kw
Reducer model
ZQ350
Reduction ratio
23.34
Capacity(can be customized)
0.9m3
Feeding cylinder
80*550
Open cylinder
30*300
