Gypsum Ceiling Tile Production Line
Created with Pixso.

CE Automatic Board Loading Machine for Gypsum Board Lamination Machine

Name

CE Automatic Board Loading Machine for Gypsum Board Lamination Machine

Brand Name: LV-fm
Model Number: FM-1300
MOQ: 1 set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 set/ year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
CE
Feature:
Artistic Ceilings
Function::
Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type:
PVC Ceilings
Dimension(L*W*H):
12600*1950*1600mm
Voltage:
380V
Stroke:
1500mm
Packaging Details:
standard package
Supply Ability:
10 set/ year
Highlight:

building materials machinery

,

gypsum ceiling production line

Product Description
CE Automatic Board Loading Machine for Gypsum Board Lamination Machine
Product Specifications
Feature Artistic Ceilings
Function Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type PVC Ceilings
Dimension (L×W×H) 12600×1950×1600mm
Voltage 380V
Stroke 1500mm

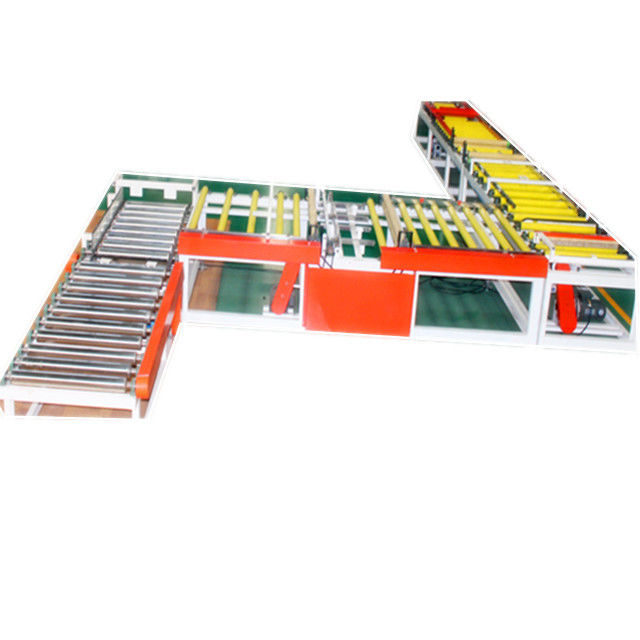

Machine Components & Capabilities
1. Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, preparing them for PVC and aluminum film lamination.

Max. Load-bearing 3000kg
Stroke 1500mm
Min. Height 620mm
Max. Height 2000mm
Platform size 1200×2400mm

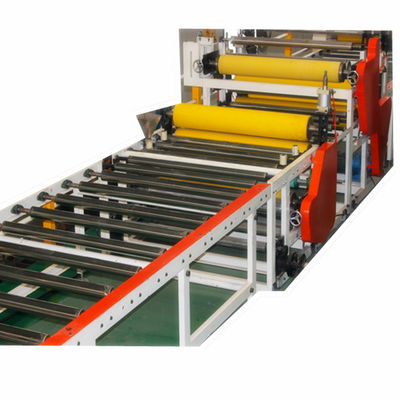

2. Double Sided Laminating Machine
  • Effective lamination width: ≤ 1300mm
  • Thickness of sheet: 5-30mm
  • Lamination speed: 3-15m/min
  • Board feeding and releasing mode: automatic
3. Automatic Cutting Machine
  • Two cutting systems: vertical/longitudinal and horizontal
  • Equipped with dust collector system
  • Cuts 1.2×2.4m boards to 603×603mm/595×595mm sizes
  • Cutting speed: 15m/min
  • Cutting knives: 3 vertical/longitudinal blades; 5 horizontal blades
  • Overall power: 17.15KW
4. Automatic Edge Sealing Machine
  • PLC controlled for high speed and output
  • Produces tight and firm edging
  • Sheet size: 600×600mm
  • Production speed: 25 pieces/min
  • Installed power: 5 KW
5. Automatic Thermoplastic Packing Machine
  • Creates tight, smooth packages for PVC gypsum board products
  • Electric source: 380V
  • Power: 23KW
  • Speed: 500 packs/hour
  • Standard packing temperature: 160-180℃
  • Package material: PE heat shrinking film
CE Automatic Board Loading Machine for Gypsum Board Lamination Machine 0
Our Service Commitment
  • Professional installation & debug teams available for on-site setup and testing
  • Year-round supply of accessories with 1-year equipment guarantee
  • Continuous technical consultation and problem-solving support
  • Assistance with consignment and import/export procedures
  • Production engineers available for machine operation support and long-term cooperation
