products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Gypsum Ceiling Tile Production Line
Created with Pixso.

Decorative Insulation Wall Board / Gypsum Ceiling Tile Making Machine

Name

Decorative Insulation Wall Board / Gypsum Ceiling Tile Making Machine

Brand Name: LV-fm
Model Number: FM-1300
MOQ: 1 set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 set/ year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
CE
Feature:
Artistic Ceilings
Function::
Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type:
PVC Ceilings
Dimension(L*W*H):
12600*1950*1600mm
Voltage:
380V
Stroke:
1500mm
Packaging Details:
standard package
Supply Ability:
10 set/ year
Highlight:

building materials machinery

,

gypsum ceiling production line

Product Description
Decorative Insulation Wall Board / Gypsum Ceiling Tile Making Machine
Product Features
  • Designed for creating artistic ceilings
  • Fireproof, heat insulation, and moisture-proof capabilities
  • Specialized for PVC ceiling tile production
Dimension (L×W×H) 12600×1950×1600mm
Voltage 380V
Stroke 1500mm
Machine Components & Specifications

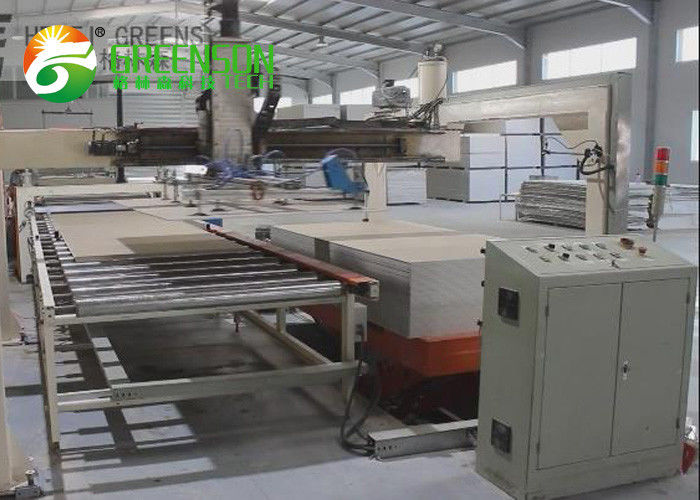

1. Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to conveyor rolls, ready for PVC and aluminum film lamination.

Max Load-bearing 3000kg
Stroke 1500mm
Height Range 620mm - 2000mm
Platform Size 1200×2400mm

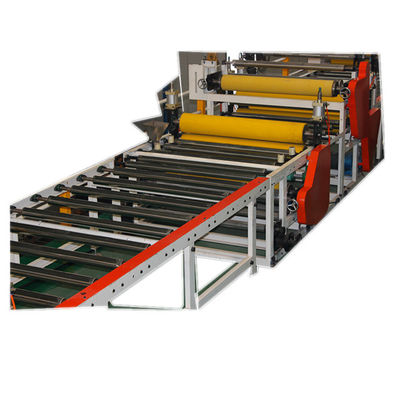

2. Double Sided Laminating Machine
  • Effective lamination width: ≤ 1300mm
  • Sheet thickness: 5-30mm
  • Lamination speed: 3-15m/min
  • Automatic board feeding and releasing
3. Automatic Cutting Machine
  • Dual cutting system: vertical/longitudinal and horizontal cutting
  • Includes dust collector system
  • Converts 1.2×2.4m boards to 603×603mm/595×595mm tiles
  • Cutting speed: 15m/min
  • Total power: 17.15KW
4. Automatic Edge Sealing Machine
  • PLC controlled for high speed and output
  • Sheet size: 600×600mm
  • Production speed: 25 pieces/min
  • Installed power: 5 KW
5. Automatic Thermoplastic Packing Machine
  • Creates tight, smooth packages for finished products
  • Power: 23KW (380V)
  • Speed: 500 packs/hour
  • Optimal temperature: 160-180℃
  • Uses PE heat shrinking film
Decorative Insulation Wall Board / Gypsum Ceiling Tile Making Machine 0
Our Comprehensive Services
  • Professional installation & debugging: Our teams ensure proper setup and testing until qualified production is achieved
  • Year-round support: One-year equipment guarantee with continuous accessory supply
  • Technical assistance: 24/7 consultation and problem resolution
  • Trade facilitation: Assistance with consignment and import/export procedures
  • Long-term cooperation: Production engineers available for operational support
