products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Gypsum Ceiling Tile Production Line
Created with Pixso.

Full Automatic Ceiling Color Gypsum Cornice Making Machine with High Efficient

Name

Full Automatic Ceiling Color Gypsum Cornice Making Machine with High Efficient

Brand Name: LV-fm
Model Number: FM-1300
MOQ: 1 set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 set/ year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
CE
Feature:
Artistic Ceilings
Function::
Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type:
PVC Ceilings
Dimension(L*W*H):
12600*1950*1600mm
Voltage:
380V
Stroke:
1500mm
Packaging Details:
standard package
Supply Ability:
10 set/ year
Highlight:

building materials machinery

,

gypsum ceiling production line

Product Description
Full Automatic Ceiling Color Gypsum Cornice Making Machine with High Efficiency
Product Specifications
Feature Artistic Ceilings
Function Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type PVC Ceilings
Dimension (L×W×H) 12600×1950×1600mm
Voltage 380V
Stroke 1500mm
Automated Production Line Features
1. Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, ready for PVC and aluminum film lamination.

Max. Load-bearing 3000kg
Stroke 1500mm
Min. Height 620mm
Max. Height 2000mm
Platform size 1200×2400mm

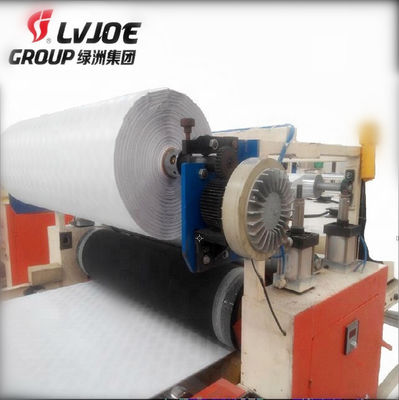

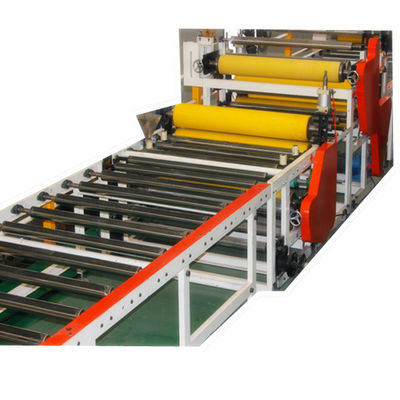

2. Double Sided Laminating Machine
  • Effective lamination width: ≤ 1300mm
  • Thickness of sheet: 5-30mm
  • Lamination speed: 3-15m/min
  • Board feeding and releasing mode: automatic
3. Automatic Cutting Machine
  • Dual cutting systems: vertical/longitudinal and horizontal cutting
  • Includes dust collector system
  • Cuts 1.2×2.4m boards to 603×603mm/595×595mm sizes
  • Cutting speed: 15m/min
  • Cutting blades: 3 vertical/longitudinal, 5 horizontal
  • Overall power: 17.15KW
4. Automatic Edge Sealing Machine
  • PLC-controlled for high speed and output
  • Produces tight, firm edges
  • Sheet size: 600×600mm
  • Production speed: 25 pieces/min
  • Installed power: 5 KW
5. Automatic Thermoplastic Packing Machine
  • Creates tight, smooth packages for finished PVC gypsum boards
  • Electric source: 380V
  • Power: 23KW
  • Speed: 500 packs/hour
  • Standard packing temperature: 160-180℃
  • Package material: PE heat shrinking film
Full Automatic Ceiling Color Gypsum Cornice Making Machine with High Efficient 0
Comprehensive Customer Support
  • Professional installation & debugging teams available for on-site setup and testing
  • Year-round supply of accessories with 1-year equipment guarantee
  • Continuous technical consultation and problem-solving support
  • Assistance with consignment and import/export procedures
  • Production engineers available for operational support and long-term cooperation
