Mould Proof Gypsum Ceiling Tile Board Pvc Film 5-30mm Sheet Thickness

Mould Proof Gypsum Ceiling Tile Board Pvc Film 5-30mm Sheet Thickness

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

Mould Proof Gypsum Ceiling Tile Board PVC Film 5-30mm Sheet Thickness

Product Attributes

Attribute	Value
Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

Product Description

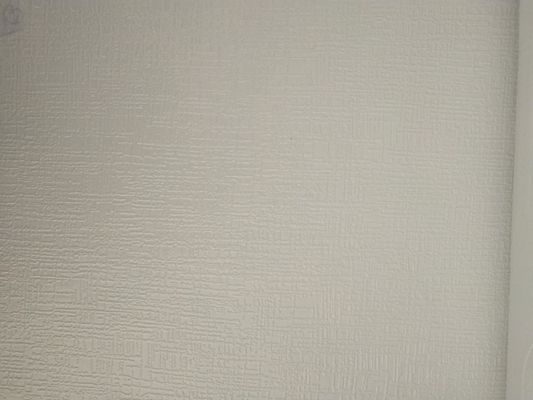

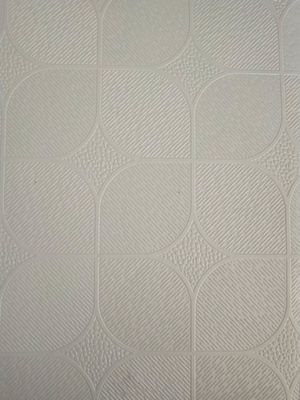

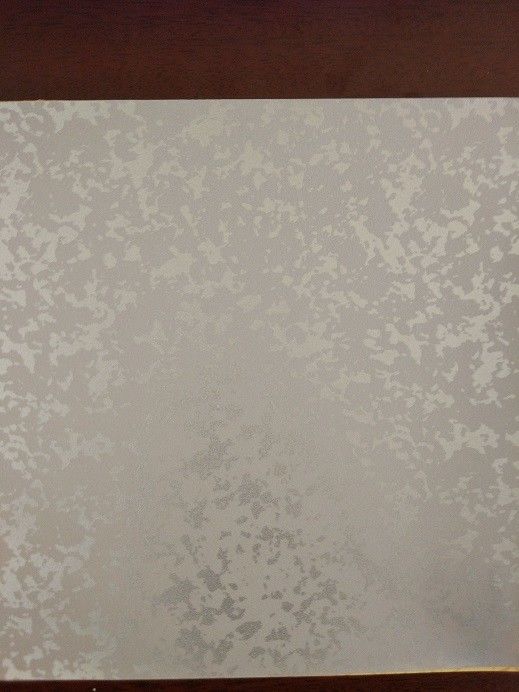

Gypsum board laminated based on paper faced plasterboard, with special technology that laminates film on surface with sticking and pressing. The visual effect is unique and suitable for personalized decoration needs.

Key Features

Healthy and environmentally friendly
Various patterns, plentiful textures and complete color options
No dust fall, moisture proof, mould proof
Easy to clean and maintain
Easy to operate with no need for secondary decoration

PVC film laminated gypsum board offers waterproof, fireproof and soundproof advantages. Widely used for ceilings and partition walls due to its visual appeal and cleanliness, these boards can be found in commercial buildings, supermarkets, hospitals, movie theaters and similar public spaces.

PVC Laminated Gypsum Ceiling Tile Production Line

Chief Introduction

This machine adopts the latest coating and laminating technology to laminate functional or decorative films with the board. The entire machine operates synchronously for optimal performance.

Technical Parameters

Effective laminating width: 1300mm

Sheet thickness: 5-30mm

Laminating speed: 15m/min

Speed adjustment: Frequency conversion synchronous speed regulating

Electrical control: PLC

Annual capacity: 2-6 million Sq.m

Film material: PVC film, aluminum foils, decorative material, etc.

Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Custom configurations available according to customer requirements.

Production Flowchart

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Main Equipment

Automatic loading device
Lamination machine: Combines decorative film and boards through dust collection, glue coating, and press roller systems
Automatic cutting machine: Precisely cuts laminated gypsum boards for decoration use
Electrostatic Pulse Bag Style Dust Collector: Efficient dust removal system with large exhaust fan
Automatic overturn system
Automatic stacking machine
Automatic sealing machine
Automatic package machine: Advanced packaging with moisture-proof film covering
