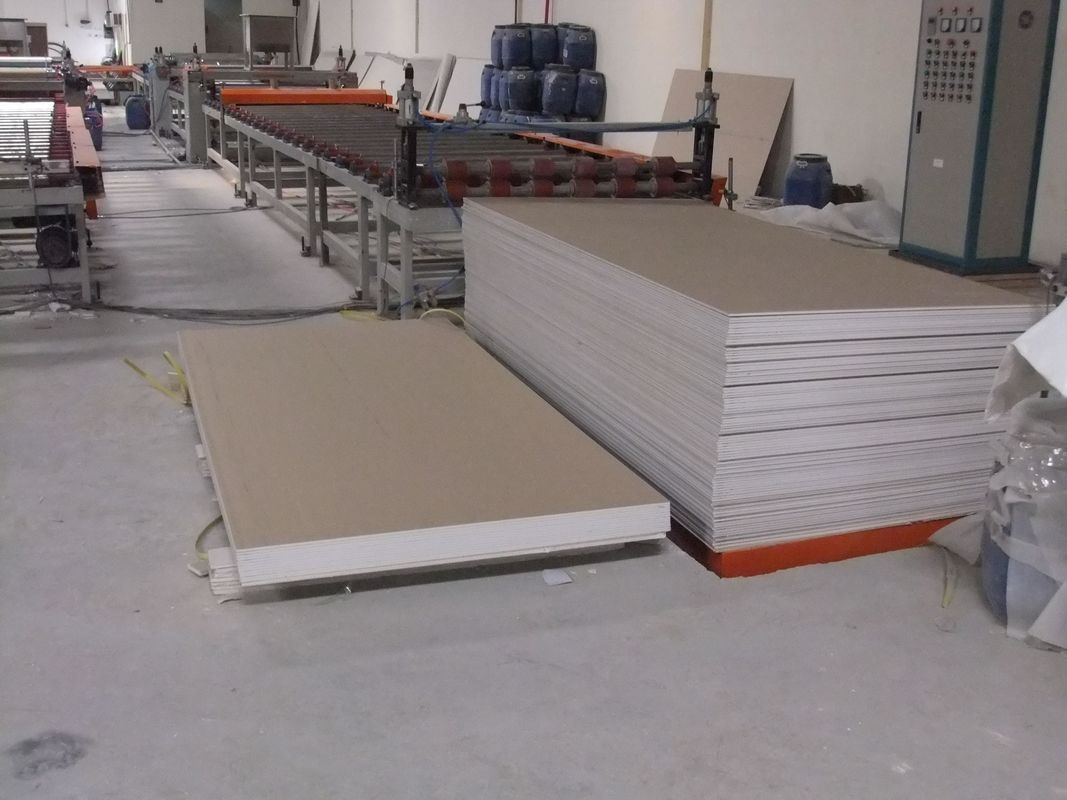

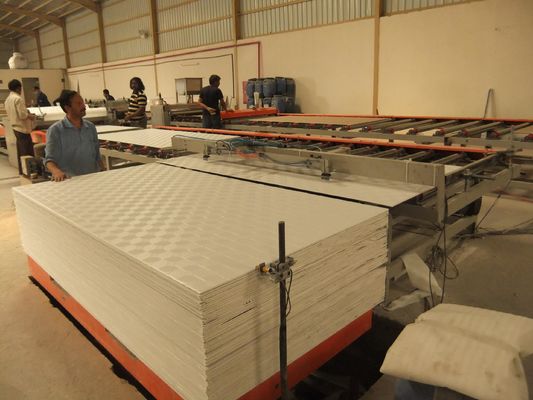

Professional Gypsum Ceiling Tile Production Line With Automatic Board Unloading Machine

Professional Gypsum Ceiling Tile Production Line With Automatic Board Unloading Machine

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

Professional Gypsum Ceiling Tile Production Line With Automatic Board Unloading Machine

Product Specifications

Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

Product Overview

Our gypsum ceiling tile production line laminates decorative films onto paper-faced plasterboard using specialized sticking and pressing technology. This process creates unique visual effects ideal for personalized decoration requirements.

Key Production Features

Environmentally friendly manufacturing process
Wide selection of patterns, textures, and colors
Dust-free, moisture-resistant, and mold-proof properties
Easy maintenance and cleaning
Simple operation requiring no secondary decoration

PVC film laminated gypsum boards offer waterproof, fireproof, and soundproof advantages, making them perfect for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

Technical Specifications

Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-6 million Sq.m
Film Material	PVC film, aluminum foils, decorative material
Board Sheet Material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements.

Production Process Flow

Automatic board feeding → Pre-dusting → Coating → Drying and conveying → Aluminum foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Auto-lift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Core Equipment Components

Automatic Loading Device: Ensures continuous material feeding into the production line.

Lamination Machine: Combines decorative films with boards through precise glue application and pressure rolling mechanisms.

Automatic Cutting Machine: Precisely cuts laminated boards to required dimensions for decoration applications.

Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fan and pipes for efficient dust removal.

Automatic Overturn System: Enables two-sided processing of boards.

Automatic Stacking and Packaging: Includes advanced film wrapping with heating for moisture-proof protection.
